CNC Flat-Bed Lathes: Versatile Tools for Precision Machining

Introduction of CNC Flat-Bed Lathes

CNC flat-bed lathes are widely used in the machining industry because of their adaptability, ease of operation, and ability to handle large workpieces. Combining the advantages of traditional flat-bed designs with modern CNC technology, these machines are suitable for both small and large-volume production.

Design and Construction

The flat-bed design provides a stable and easy-to-operate platform for turning operations. Unlike slant-bed lathes, CNC flat-bed lathes have a horizontal bed, making it easier to handle larger and heavier workpieces. Their structure is usually made of cast iron or high-strength steel to provide rigidity and reduce vibration during cutting.

This design is particularly beneficial for operators working with long shafts, rollers, or cylindrical parts. It can be mounted securely and provides ample space for tool installation and movement. Modern CNC flat-bed lathes are equipped with digital controllers to achieve high-precision turning, threading, drilling, and slotting operations.

Features include:

Servo-driven spindle for constant torque and speed

Turret or tool holder for multiple tool changes

Automatic lubrication system for extended machine life

Manual or automatic tailstock for additional support

These features increase the overall flexibility of the machine, allowing it to perform a wide range of tasks with minimal setup changes.

Applications in a variety of industries

CNC flat-bed lathes are widely used in industries such as automotive, agriculture, energy, and heavy equipment. They are ideal for machining large-diameter parts and long parts that require stable support and precise finishing.

Common applications include:

Turning brake drums and rotors

Machining long threaded rods or shafts

Manufacturing rollers for conveyor systems

Manufacturing bushings, sleeves, and tubes

Due to their size and capacity, CNC flat-bed lathes are particularly useful for repair shops and custom parts manufacturers.

CNC flat-bed lathes continue to play an important role in the machining industry due to their versatility, durability, and high precision. Whether for prototyping, custom machining or mass production, these machines provide reliable and efficient solutions for turning large and complex parts.

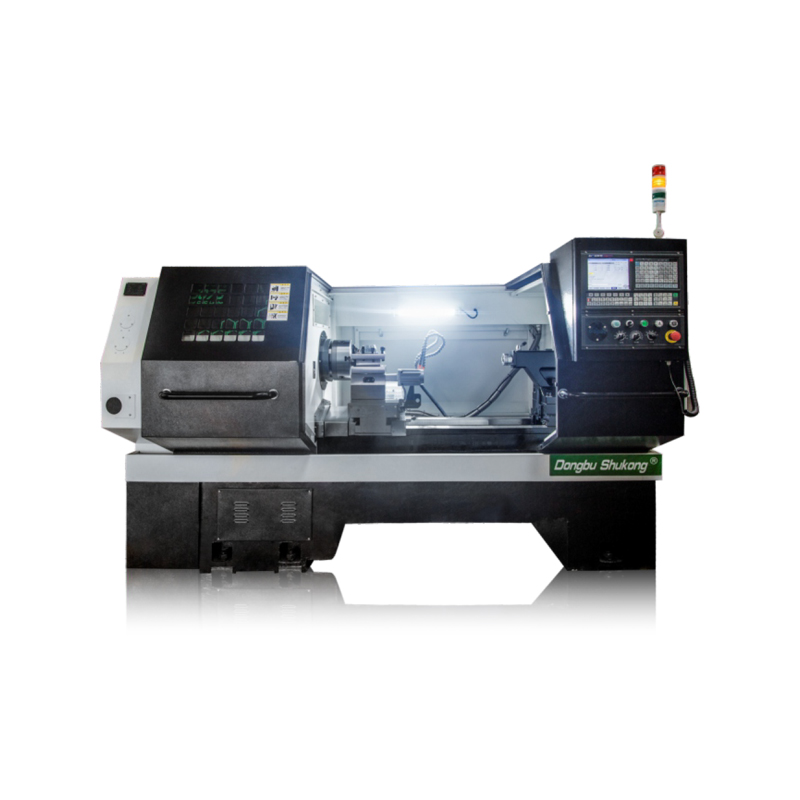

If you are looking for a cost-effective and reliable flat lathe, you might want to take a look at this Eastern Flat Lathe C5075 Series

This series of flat bed structures adopts a high-rigidity, high-load rectangular guide design. During operation, the dynamic performance of the rectangular guide is optimized. It is resistant to warping and vibration during heavy cutting. The processing operation is stable, the processing accuracy is higher, and the finish is better.
