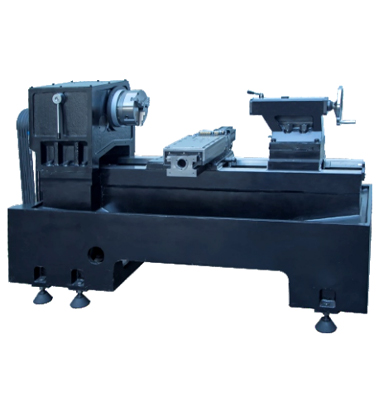

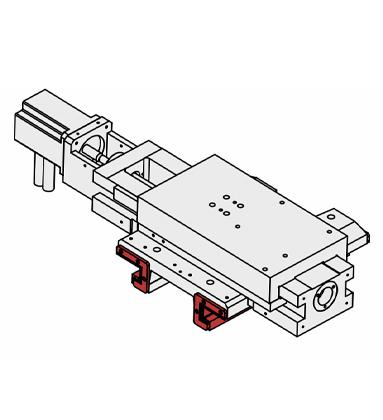

The main spindle box of C6085/C6085-B Horizontal CNC Flat Bed Lathe For Heavy Cutting adopts corresponding three-speed transmission and high torque. The main spindle box bearing adopts double row cylindrical roller bearings and bidirectional thrust angular contact bearings, which have high rigidity and long-term stability of heavy cutting accuracy. The carriage in the machine tool adopts a rectangular guide rail design and a high-quality, high-rigidity 4-station tool holder. The processed products are of high quality and high processing efficiency. The turning rigidity and dynamic performance of the middle carriage are optimized to improve the service life and turning rigidity of the machine tool when processing valve body parts.
|
Maximum Machining Diameter: 850mm |
|
Maximum Machining Length: 1500mm |
|
Chuck Size: 630φ/mm |
DETAIL PARAMETERS
VIDEO DISPLAY
Feature:
Flat Bed Lathe, Gear Shift, standard with Manual Chuck, Electric 4 Post Turret, Rectangular Guideway, and Manual Tailstock, suitable for the Heavy Cutting Long Shaft and Plate Workpiece Processing.
C6085-B is standard with Servo Motor, Manual Chuck, Electric 4 Post Turret, and Manual Tailstock.
Standard |
Optional |
1. SIEMENS 808D Advanced Control System |
1. FANUC 0i-TF Plus Control System |
2. A2-8 |
2. GSK 988TA Absolute Control System |
3. Servo Spindle |
3. Hydraulic Through Chuck 10inch |
4. Manual Chuck 12inch |
4. Hydraulic None Through Chuck 10inch |
5. Manual Tailstock |
5. Hydraulic Tailstock |
6. Electric 4 Post Turret |
6. PRAGATIBTP63 Electric 8 Tool Post Turret |
7. Rectangular Guideway |
7.Auto Bar Feeder |
8.Oil Skimmer |
Specification
Configuration | C6085 | C6085-B | ||
Machining Capacity | Maximum Swing Over Bed | φ/mm | 600 | 600 |
Maximum Swing Over Slide | φ/mm | 400 | 400 | |
Maximum Machining Lenght | mm | 750 | 750 | |
Maximum Machining Diameter | φ/mm | 520 | 520 | |
Spindle | Spindle Head Type | GB59001 | A2-8 | A2-8 |
Spindle Taper Hole | φ/mm | 102 | 102 | |
Spindle Speed Range | r/min | 50-300;300-700;700-1000 | 50-1500 | |
Spindle Shift Mode | Gear | Servo | ||
Spindle Output Torque | N·m | 2200 | 180 | |
Main Motor Power | kW | 11 | 11 | |
Chuck Type | Manual Chuck | Manual Chuck | ||
Chuck Size | inch | 12 | 12 | |
Feed Rate | Rapid Traverse Speed On X-axis | m/min | 15 | 15 |
Rapid Traverse Speed On Z-axis | m/min | 20 | 20 | |
Servo Motor Torque On X-axis | N·m | 7.5 | 7.5 | |
Servo Motor Torque On Z-axis | N·m | 10 | 10 | |
X-axis Travel | mm | 310 | 310 | |
Z-axis Travel | mm | 800 | 800 | |
Guideway Type | Rectangular Guideway | Rectangular Guideway | ||
Turret | Turret Type | Electric 4 Post Turret | Electric 4 Post Turret | |
Tool Size | mm | 32×32 | 32×32 | |
Tailstock | Tailstock Type | Manual | Manual | |
Tailstock Sleeve Diameter | φ/mm | 100 | 100 | |
Tailstock Sleeve Travel | mm | 200 | 200 | |
nternal Taper of Tailstock Sleeve | MT6 | MT6 | ||
Power Source | Total Rated Power | KVA | 17 | 17 |
Total Rated Current | A | 32 | 32 | |
Dimension | Machine Weight | kg | 3715 | 3715 |
Machine Dimension | L×W×H(mm) | 3000×1540×1740 | 3000×1540×1740 |
Please note that this parameter and appearance are subject to change without notice, thanks.
