Maximum Machining Diameter: 300mm |
|
Maximum Machining Length: 750mm |
|
Chuck Size: 8" inch |
DETAIL PARAMETERS
VIDEO DISPLAY
The main spindle box of CK6136 Horizontal CNC Flat Bed Lathe adopts infinitely variable speed and high torque. Protagonal contact bearing pairing, high rigidity, high speed, long-term stability of cutting accuracy.
The machine tool adopts an automatic centralized lubrication system to provide regular and quantitative oil supply. The oil distributor adjusts the oil supply pressure according to the pressure requirements of different lubricating parts to ensure that any lubricating part (such as guide rails, inserts, screws, nuts and other friction pairs) can get Adequate lubrication and set the lubrication system alarm function.
The electrical unit cabinet of the machine tool has good sealing and is equipped with air conditioning in the electrical cabinet to ensure the normal operation of the CNC system in the high temperature and high humidity environment of the machine tool.
1. X-and Z-axis servo motors are directly connected to the precision ball screw through flexible couplings, and the screws lare fixed at both ends. The rigidity of mounting base is improved to minimize the screw deformation caused by frequent, high- speed positioning or heavy cutting.
2. Full guideway protection ensures the machine precision and prolongs the service life. Full cover protection prevents cutting liquid from coming out.
3. Manual chuck as standard, power chuck as optional.
4. The integral bed base improves rigidity. Centralized automatic lubrication increases the service life of the machine. Outer cylindrical surfaces, conical surfaces, curved surfaces, grooves, threads, etc. can be machined.
![]() |
SpindleHigh-quality angular contact bearings (three in the front and two at the rear) and the main servo motor are adopted, It features high speed, high precision, low noise, high rigidity, high torque, and long-term stability of heavy cutting precision.Spindle Power: 5.5kW Spindle Taper Hole: Ф61mm |

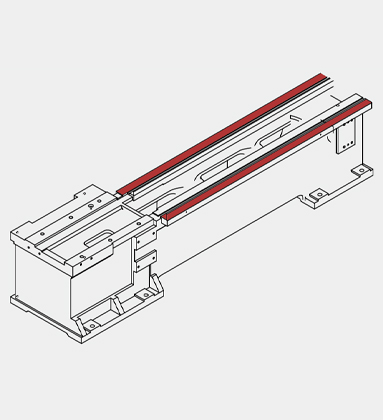

Widened BedThe triangular rib is widened and thickened. The contact surface of the carriage is increased. The rigidity and seismic resistance are greatly improved.X/Z-axis Travel: 200/650mm X/Z-axis Rapid Traverse Speed: 8/10m/min |
![]() |
![]() |

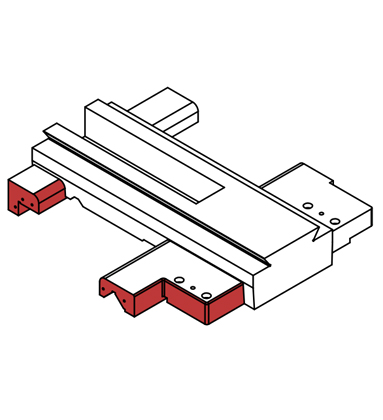

SlideThe front of the large slide is widened and lengthened to improve the cutting stability and rigidity by 30% and greatly extend the service life of the machine. |
Flat Bed Lathe, standard with Manual Chuck, Electric 4 Post Turret, Hard Guideway, and Manual Tailstock, suitable for the Finish Processing of Shaft and Plate Workpiece.
Standard |
Optional |
1. SIEMENS 808D Advanced Control System |
1. FANUC 0i-TF Plus Control System |
2. A2-6 |
2. GSK 988TA Absolute Control System |
3. Servo Spindle |
3. Hydraulic Through Chuck 8inch |
4. Manual Chuck 8 inch |
4. Hydraulic None Through Chuck 8inch |
5. Manual Tailstock |
5. Hydraulic Tailstock |
6. Electric 4 Post Turret |
6. PRAGATI BTP63 Electric 8 Tool Post Turret |
7. Hard Guideway |
7. Auto Bar Feeder |
8. Oil Skimmer |
Configuration | CK6136 | ||
Machining Capacity | Maximum Swing Over Bed | φ/mm | 400 |
Maximum Swing Over Slide | φ/mm | 180 | |
Maximum Machining Lenght | mm | 750 | |
Maximum Machining Diameter | φ/mm | 300 | |
Spindle | Spindle Head Type | GB59001 | A2-6 |
Spindle Taper Hole | φ/mm | 61 | |
Spindle Speed Range | r/min | 60-3500 | |
Spindle Shift Mode | Servo | ||
Spindle Output Torque | N·m | 72 | |
Main Motor Power | kW | 7.5 | |
Chuck Type | Manual | ||
Chuck Size | inch | 8 | |
Feed Rate | Rapid Traverse Speed On X-axis | m/min | 8 |
Rapid Traverse Speed On Z-axis | m/min | 10 | |
Servo Motor Torque On X-axis | N·m | 4 | |
Servo Motor Torque On Z-axis | N·m | 6 | |
X-axis Travel | mm | 200 | |
Z-axis Travel | mm | 750 | |
Guideway Type | Hard Guideway | ||
Turret | Turret Type | Electric 4 Post Turret | |
Tool Size | mm | 25×25 | |
Tailstock | Tailstock Type | Manual | |
Tailstock Sleeve Diameter | φ/mm | 60 | |
Tailstock Sleeve Travel | mm | 120 | |
Internal Taper of Tailstock Sleeve | MT4 | ||
Power Source | Total Rated Power | KVA | 10 |
Total Rated Current | A | 20 | |
Dimension | Machine Weight | kg | 1765 |
Machine Dimension | L×W×H(mm) | 1930×1180×1510 |
Please note that there may be slight differences in appearance and parameter depending on your options.
