Maximum Machining Diameter: 400mm |
|
Maximum Machining Length: 370mm |
|
Chuck Size: 8" inch |
DETAIL PARAMETERS
VIDEO DISPLAY
The carriage of C5037 Horizontal CNC Flat Bed Lathe for Heavy Duty Processing adopts a rectangular guide rail design and a high-quality and high-rigidity 4-station tool holder. The processed products are of high quality and high processing efficiency. The turning rigidity and dynamic performance of the middle carriage are optimized to improve the service life and turning rigidity of the machine tool when processing valve body parts. Fully protective inner sheet metal design, and fully surrounded outer sheet metal design. The thickness of the sheet metal is not less than 2mm. When the machine tool is working, it will not deform or vibrate. Stainless steel telescopic guards are used for the guide rails, screw rods, nuts, and bearings in the inner protection. Easy to remove and clean machine chips.
1. This lathe is developed using international technologies with high precision, speed, and rigidity. With a user-friendly design, an elegant appearance, and easy-to-maintain features, it integrates méchanical, electrical, and hydraulic systems to enhance the production efficiency.
2. X/Z-axis servo motors are directly connected to the precision ball screw through flexible couplings, and the screws are fixed at both ends. The rigidity of mounting base is improved to minimize the screw deformation caused by。 frequent, high-speed positioning or heavy cutting. A pair of 60° angular contact precision bearings are used for high speed and precision.
3. The lathe has full guideway protection. The coolant tank and chip conveyor are separated from the main unit to prevent thermal cutting from affecting machining accuracy.
4. The machine with an electrical cabinet has good sealing performance and uses the heat exchanger to ensure normal operation in a high-temperature and high-humidity environment.
![]() |

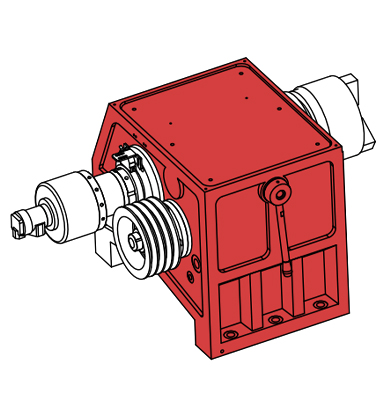

SpindleThe spindle box combines the double-row short cylindrical roller bearings and bidirectional thrust ball bearings. The main servo motor, paired with the three gears inside the box, enables stepless speed change within each gear, achieving high torque, high rigidity, and ensuring the accuracy during long-term heavy cutting. Spindle Power: 7.5kw Spindle Taper Hole: Φ61 mm |

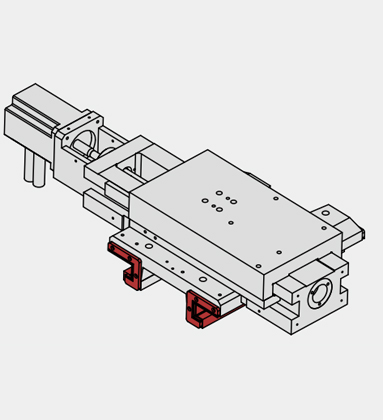

Rectangular GuidewaysThe flat bed structure is suitable for high speed machining with high positioning accuracy. The rectangular hard guideway of X and Z axes is suitable for heavy cutting and ensures high rigidity and long-term cuting precision. X/Z-axis Travel: 310/430mm X/Z-axis Rapid Traverse Speed: 12/16m/min |
![]() |
Flat Bed Lathe, Gear Shift, standard with Hydraulic Through Chuck, Electric 4 Post Turret, Rectangular Guideway, and without Tailstock, suitable for the Heavy Cutting Long Shaft and Plate Workpiece Processing.
Standard |
Optional |
1. SIEMENS 808D Advanced Control System |
1. FANUC 0i-TF Plus Control System |
2. A2-6 |
2. GSK 988TA Absolute Control System |
3. Gear Shift Spindle |
3. Hydraulic None Through Chuck 10inch |
4. Hydraulic Through Chuck 8inch |
4. Auto Bar Feeder |
5. Electric 4 Post Turret |
5. Oil Skimmer |
6. Rectangular Guideway |
|
7. No Tailstock |
Configuration | C5037 | ||
Machining Capacity | Maximum Swing Over Bed | φ/mm | 500 |
Maximum Swing Over Slide | φ/mm | 340 | |
Maximum Machining Lenght | mm | 370 | |
Maximum Machining Diameter | φ/mm | 400 | |
Spindle | Spindle Head Type | GB59001 | A2-6 |
Spindle Taper Hole | φ/mm | 61 | |
Spindle Speed Range | r/min | 50-500,500-900,900-1400 | |
Spindle Shift Mode | Gear | ||
Spindle Output Torque | N·m | 250 | |
Main Motor Power | kW | 7.5 | |
Chuck Type | Hydraulic Through Chuck | ||
Chuck Size | inch | 8" | |
Feed Rate | Rapid Traverse Speed On X-axis | m/min | 12 |
Rapid Traverse Speed On Z-axis | m/min | 16 | |
Servo Motor Torque On X-axis | N·m | 5 | |
Servo Motor Torque On Z-axis | N·m | 7.5 | |
X-axis Travel | mm | 310 | |
Z-axis Travel | mm | 430 | |
Guideway Type | Rectangular Guideway | ||
Turret | Turret Type | Electric 4 Post Turret | |
Turret Transposition Time | min | 2.0/90;2.5/180;3.0/270 | |
Repeated Positioning Accuracy of Turret Transposition | mm | 0.008 | |
Tool Size | mm | 25×25 | |
Tailstock | Tailstock Type | No Tailstock | |
Power Source | Total Rated Power | KVA | 13 |
Total Rated Current | A | 25 | |
Dimension | Machine Weight | kg | 2500 |
Machine Dimension | L×W×H(mm) | 2230×1420×1530 |
Please note that there may be slight differences in appearance and parameter depending on your options.
