Maximum Machining Diameter: 500mm |
|
Maximum Machining Length: 1000mm |
|
Chuck Size: 10" inch |
DETAIL PARAMETERS
VIDEO DISPLAY
1. The machine is an optimized version of the traditional CK6150 and features high precision, speed, and rigidity. It is ergonomic and easy to use. Integral protection is provided to keep the environment clean and tidy.
2. The bed is integrally cast using the resin sand process. After multiple heat treatment processes such as aging and high-frequency quenching, the specially widened guide way can maintain optimal machining precision for a long Time.
3. The machine tool features high-precision ball screws and angular contact ball bearings connected to the servo motor via a dedicated flexible coupling, enabling high transmission precision and a long service life.
4. The servo spindle motor can achieve stepless speed change in the spindle gear to machine different workpieces, thereby optimizing the machining capacity and cutting performance.
1. Integral bed base, high rigidity.
2. The spindle adopts domestic high-quality angular contact bearings, with high speed, high precision and low noise.
3. The X and Z-axis servo motors are directly connected to the precision ball screw through elastic couplings, with high precision. Both ends of the screw are fixed, which improves the support stiffness of the support base, enables frequent high-speed positioning, and eliminates wire problems caused by heavy cutting. Bar distortion is minimized.
4. The spindle adopts frequency conversion speed regulation.
5. Centralized automatic lubrication can extend the service life of the locomotive.
6. The feed system is driven by a servo motor and the ball screw has high transmission accuracy.
7. The lathe adopts full guide rail protection to ensure the accuracy of the machine tool and extend its service life. The machine tool cover is fully protected to prevent cutting fluid from splashing out.
8. The machine tool configuration uses domestic high-quality oil cylinders and power chucks.
9. It has the functions of turning, outer cylindrical surface, conical surface, arc surface, grooving and thread processing.
![]() |

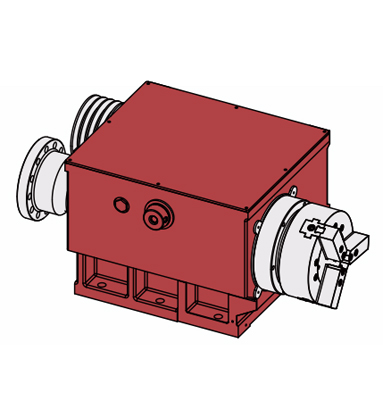

SpindleThe spindle box combines the double-row short cylindrical roller bearings and bidirectional thrust ball bearings. The main servo motor, paired with the three gears inside the box, enables stepless speed change within each gear, achieving high torque, high rigidity, and ensuring the accuracy during long-term heavy cutting. Spindle Power: 7.5kw Spindle Taper Hole: Ф86 mm |

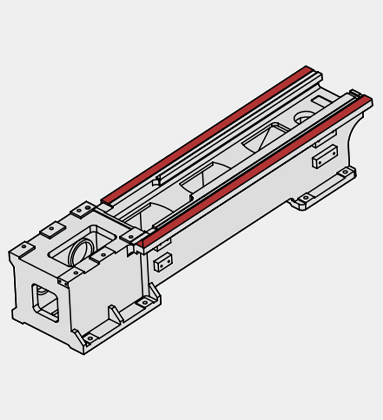

Widened BedThe triangular rib is widened and thickened. The contact surface of the carriage is increased. The rigidity and seismic resistance are greatly improved. X/Z-axis Travel: 310/1050mm X/Z-axis Rapid Traverse Speed: 8/10m/min |
![]() |
![]() |
SlideThe front of the large slide is widened and lengthened to improve the cutting stability and rigidity by 30% and greatly extend the service life of the machine. |
Flat Bed Lathe, Gear Shift, standard with Manual Chuck, Electric 4 Post Turret, Hard Guideway, and Manual Tailstock, suitable for the Heavy Cutting Long Shaft and Plate Workpiece Processing.
Optional with machining length 1500mm and 2000mm.
Standard |
Optional |
1. SIEMENS 808D Advanced Control System |
1. FANUC 0i-TF Plus Control System |
2. A2-6 |
2. GSK 988TA Absolute Control System |
3. Servo Spindle |
3. Hydraulic Through Chuck 8inch |
4. Manual Chuck 10 inch |
4. Hydraulic None Through Chuck 10inch |
5. Manual Tailstock |
5. Hydraulic Tailstock |
6. Electric 4 Post Turret |
6. PRAGATI BTP63 Electric 8 Tool Post Turret |
7. Hard Guideway |
7. Auto Bar Feeder |
8. Oil Skimmer |
Configuration | CK6150 | CK6150-B | CK6150-L | ||
Machining Capacity | Maximum Swing Over Bed | φ/mm | 500 | 500 | 500 |
Maximum Swing Over Slide | φ/mm | 300 | 300 | 290 | |
Maximum Machining Lenght | mm | 500 | 500 | 500 | |
Maximum Machining Diameter | φ/mm | 1000 | 1000 | 1500/2000 | |
Spindle | Spindle Head Type | GB59001 | A2-8 | A2-8 | A2-8 |
Spindle Taper Hole | φ/mm | 86 | 86 | 90 | |
Spindle Speed Range | r/min | 50-300,300-789, 655-1260 |
60-2000 | 45-260,140-800,280-1600 | |
Spindle Shift Mode | Gear | Seryo | Gear | ||
Spindle Rated Torque | N·m | 600 | 600 | 1500rpm→47.75Nm; 100rpm→716Nm |
|
Main Motor Power | kW | 7.5 | 7.5 | 7.5 | |
Chuck Type | Manual Chuck | Manual Chuck | Manual Chuck | ||
Chuck Size | inch | 10 | 10 | 10 | |
Feed Rate | Rapid Traverse Speed On X-axis | m/min | 8 | 8 | 6 |
Rapid Traverse Speed On Z-axis | m/min | 10 | 10 | 10 | |
Servo Motor Torque On X-axis | N·m | 5 | 5 | 5 | |
Servo Motor Torque On Z-axis | N·m | 7.5 | 7.5 | 7.5 | |
X-axis Travel | mm | 310 | 310 | 290 | |
Z-axis Travel | mm | 1050 | 1050 | 1550/2050 | |
Guideway Type | Hard Guideway | Hard Guideway | Hard Guideway | ||
Turret | Turret Type | Electric4 Post Turret | Electric 4 Post Turret | Electric 4 Post Turret | |
Tool Size | mm | 25×25 | 25×25 | 25×25 | |
Tailstock | Tailstock Type | Manual | Manual | Manual | |
Tailstock Sleeve Diameter | φ/mm | 75 | 75 | 75 | |
Tailstock Sleeve Travel | mm | 120 | 120 | 150 | |
Internal Taper of Tailstock Sleeve | MT5 | MT5 | MT5 | ||
Power Source | Total Rated Power | KVA | 11 | 11 | 15 |
Total Rated Current | A | 20 | 20 | 26 | |
Dimension | Machine Weight | kg | 2385 | 2385 | 2700/3000 |
Machine Dimension | L×W×H(mm) | 2600×1220×1650 | 2600×1220×1650 | 3250×1465×1705 3750×1465×1705 |
Please note that there may be slight differences in appearance and parameter depending on your options.
