VCT100 Vertical Turning Lathe can turn various threads, arcs, cones and internal and external curved surfaces of rotation, and can meet the speed requirements for high-speed cutting of ferrous and non-ferrous metal materials. It is mainly used to process large and heavy workpieces with large radial dimensions and relatively small axial dimensions and complex shapes.
|
Maximum Machining Diameter: 1000mm |
|
Maximum Machining Height: 800mm |
|
Chuck Size: 21" inch |
DETAIL PARAMETERS
VIDEO DISPLAY
One of the main features of the VCT100 Vertical Turning Lathe is its versatility. It comes with a range of tooling options and customizable parameters that allow operators to tailor the machine's settings to meet specific requirements for different shaft materials and sizes. This adaptability makes it suitable for a variety of applications across a variety of industries, including automotive and manufacturing.
The VCT100 Vertical Turning Lathe is designed for maximum efficiency and productivity. Its automated operations reduce the need for manual intervention, resulting in faster turnaround times and higher throughput. In addition, the lathe's vertical configuration allows for easy loading and unloading of axes, further streamlining the production process.
1. Built on cutting-edge technologies at home and abroad, the Vertical Lathe VTC100 is economical, efficient, energy-saving, and environmentally friendly, the first choice for machining complex disc and short shaft parts in automobile, water pump, motor, and other industries.
2. This machine adopts an extended heavy-duty roller linear guideway, which has good cutting rigidity, dynamic response performance, good precision retention, and a long service life.
3. This machine can turn various threads, arcs, cones, and inner and outer curved surfaces of rotating parts. It can also meet the speed requirement for cutting ferrous and non-ferrous metal materials.
4. This machine is mainly used for machining large and heavy workpieces with large radial dimensions, small axial dimensions, and complex shapes. Additional devices can be installed for milling or grinding.
![]() |

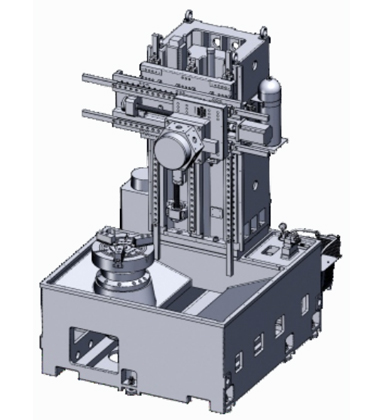

Bed Features1. The bed features excellent shock absorption due to its high-strength inoculated cast iron construction. 2. One of the prominent bed features is the large chip discharge opening with a wide angle, which effectively dissipates cutting heat. 3. The bed features a rigid structure and good precision retention, thanks to the finite element analysis(FEA) and proper rib layout. |

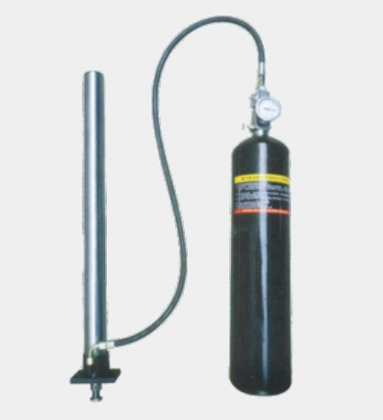

Nitrogen Balance System1. The high-pressure nitrogen in the accumulator is used to balance the slide weight, which enables high-speed and high-precision machining, reduces the servo motor load, and maintains the machine precision in the long run. 2. The balancer requires no power system, which is energy-saving and environmentally friendly. |
![]() |
![]() |

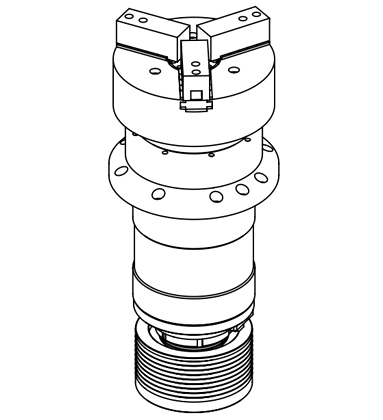

High-Performance Integrated Unit Spindle1. The integrated unit spindle meets the machine tool's demands for high rigidity, speed, and precision simultaneously. 2. With a 0.02mm gap from the machine bed and a large contact area, the spindle features high rigidity and good shock absorption. 3. The spindle has a tight seal against foreign objects, ensuring stable operation in harsh machining conditions. Spindle Speed: 1000rpm Spindle Power: 22kW |
VTC100 Vertical Lathe Machine Features
Vertical Machining Lathe VTC100, with Vertical 5 Tool Post Turret, Hydraulic Chuck, High Rigidity and High Precision, suitable for the Automobile, Water Pump, Motor and other Complex Plate and Short Shaft Workpiece Processing.
Standard |
Optional |
1. SIEMENS 828D Basic Control System |
1. FANUC 0i-TF Plus Control System |
2. A2-15 |
2. GSK 988TA Absolute Control System |
3. Servo Spindle |
3. 12 Post Driven Tool Turret(BMT65) |
4. Hydraulic None Through Chuck 21 inch |
4. Hydraulic Servo8/12 Tool Post Turret |
5. Vertical 5 Tool Post Turret |
5. Oil Skimmer |
6. No Tailstock |
6. Chip Conveyor |
7. Roller Linear Guideway |
Configuration | VTC100 | ||
Machining Capacity | Maximum Swing Over Bed | φ/mm | 1000 |
Max Machining Height | mm | 800 | |
Max Machining Diameter | φ/mm | 1000 | |
Servo Spindle | Spindle Type | GB59001 | A2-15 |
Spindle Speed Range | r/min | 50-1000 | |
Spindle Shift Mode | Servo | ||
Spindle Output Torque | N·m | 800 | |
Main Motor Power | kW | 22 | |
Chuck Type | Hydraulic None Through Chuck | ||
Chuck Size | inch | 21" | |
Feed Rate | Rapid Traverse Speed On X-axis | m/min | 20 |
Rapid Traverse Speed On Z-axis | m/min | 15 | |
Servo Motor Torque On X-axis | N·m | 22 | |
Servo Motor Torque On Z-axis | N·m | 30 | |
X-axis Travel | mm | 650 | |
Z-axis Travel | mm | 880 | |
Guideway Type | Roller Linear Guideway | ||
Turret | Turret Type | Vertical 5 Tool Post Turret | |
Turning Tools | mm | 32×32 | |
Boring Bar Size | φ/mm | 50 | |
Power Source | Total Rated Power | KVA | 40 |
Total Rated Current | A | 85 | |
Dimension | Machine Weight | kg | 13000 |
Machine Dimension | L×W×H(mm) | 2400×3600×3600 |
Please note that there may be slight differences in appearance and parameter depending on your options.
