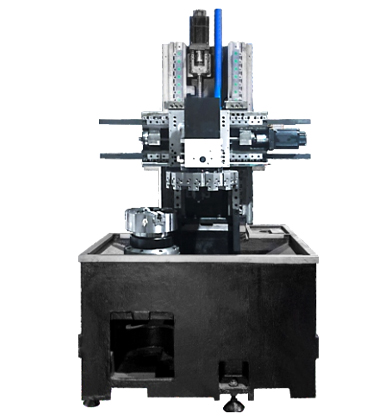

The VTC65 vertical lathe is economical, efficient, energy-saving, and environmentally friendly, making it the preferred choice for the machining of complex disc-shaped and short shaft parts in the automotive, pump, motor, and other industries. This machine tool is equipped with extended cylindrical roller guides, which provide excellent cutting performance. The X and Z axes can reach a rapid traverse speed of 25 m/min, enabling high-speed and efficient machining.
|
Maximum Machining Diameter: 650mm |
|
Maximum Machining Height: 650mm |
|
Chuck Size: 15" inch |
DETAIL PARAMETERS
VIDEO DISPLAY
1. Built on cutting-edge technologies at home and abroad, the vertical lathe VTC65 is economical, efficient, energy-saving, and environmentally friendly, the first choice for machining complex disc and short shaft parts in automobile, water pump, motor, and other industries.
2. This machine adopts an extended heavy-duty roller linear guideway, which has good cuting rigidity, dynamic response performance, good precision retention, and a long service life.
3. This machine can turn various threads, arcs, cones, and inner and outer curved surfaces of rotating parts. It can also meet the speed requirement for cutting ferrous and non-ferrous metal materials.
4. This machine is mainly used for machining large and heavy workpieces with large radial dimensions, small axial dimensions, and complex shapes. Additional devices can be installed for milling or grinding.
![]() |
Bed Features1. The bed features excellent shock absorption due to its high-strength inoculated cast iron construction. 2. One of the prominent bed features is the large chip discharge opening with a wide angle, which effectively dissipates cutting heat. 3. The bed features a rigid structure and good precision retention, thanks to the finite element analysis(FEA) and proper rib layout. |

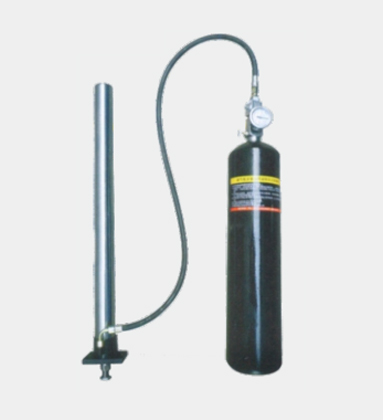

Nitrogen Balance System1. The high-pressure nitrogen in the accumulator is used to balance the slide weight, which enables high-speed and high-precision machining, reduces the servo motor load, and maintains the machine precision in the long run. 2. The balancer requires no power system, which is energy-saving and environmentally friendly. |
![]() |
![]() |

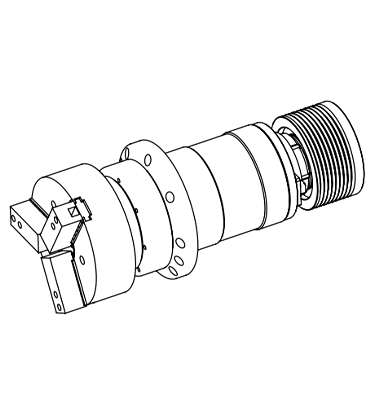

High-Performance Integrated Unit Spindle1 The integrated unit spindle meets the machine tool's demands for high rigidity, speed, and precision simultaneously. 2. With a 0.02mm gap from the machine bed and a large contact area, the spindle features high rigidity and good shock absorption. 3. The spindle has a tight seal against foreign objects, ensuring stable operation in harsh machining conditions. Spindle Speed: 1800rpm Spindle Power: 18.5kW |
1. The machine tool adopts an extended heavy-duty linear roller guide, which has good cutting rigidity and dynamic response performance, good accuracy retention and long service life.
2. The X and Z axes use precision ball screw pairs and special bearings for ball screws to meet the requirements of high rigidity and high precision cutting. The screw support adopts a pre-stretched structure, which greatly reduces the impact of thermal deformation on accuracy during long-term operation of the machine tool.
Vertical Machining Lathe VTC65,with Hydraulic Servo Turret, Hydraulic Chuck, High Rigidity and High Precision, suitable for the Automobile, Water Pump,Motor and other Complex Plate and Short Shaft Workpiece Processing.
Standard |
Optional |
1. SIEMENS 828D Basic Control System |
1. FANUC 0i-TF Plus Control System |
2. A2-11 |
2. GSK 988TA Absolute Control System |
3. Servo Spindle |
3. 12 Post Driven Tool Turret(BMT65) |
4. Hydraulic None Through Chuck 15inch |
4. Oil Skimmer |
5. Hydraulic Servo 12 Tool Post Turret |
5. Chip Conveyor |
6. No Tailstock |
|
7. Roller Linear Guideway |
Configuration | VTC65 | |||
Machining Capacity | Maximum Swing Over Bed | φ/mm | 720 | 720 |
Max Machining Height | mm | 650 | 550 | |
Max Machining Diameter | φ/mm | 650 | 600 | |
Servo Spindle | Spindle Type | GB59001 | A2-11 | |
Spindle Speed Range | r/min | 50-1800 | ||
Spindle Shift Mode | Servo | |||
Spindle Output Torque | N·m | 800 | ||
Main Motor Power | kW | 18.5 | ||
Chuck Type | Hydraulic None Through Chuck | |||
Chuck Size | inch | 15" | ||
Feed Rate | Rapid Traverse Speed On X-axis | m/min | 25 | |
Rapid Traverse Speed On Z-axis | m/min | 25 | ||
Servo Motor Torque On X-axis | N·m | 18 | ||
Servo Motor Torque On Z-axis | N·m | 22 | ||
X-axis Travel | mm | 330 | ||
Z-axis Travel | mm | 700 | 650 | |
Guideway Type | Roller Linear Guideway | |||
Turret | Turret Type | Hydraulic Servo 12 Tool Post Turret | 12 Post Driven Tool Turret(BMT65) | |
Turning Tools | mm | 32×32 | 25×25/ER40 | |
Boring Bar Size | φ/mm | 50 | 40 | |
Power Source | Total Rated Power | KVA | 30 | |
Total Rated Current | A | 65 | ||
Dimension | Machine Weight | kg | 8500 | 8550 |
Machine Dimension | L×W×H(mm) | 1800×2000×3100 |
Please note that there may be slight differences in appearance and parameter depending on your options.
