C320K TT High Speed Slant CNC Lathe

C320K TT  Slant CNC Lathe Introduction

1. This slant bed lathe is developed using international technologies with high precision, speed, and rigidity. With a user-friendly design, an elegant appearance, and easy-to-maintain features, it integrates mechanical, electrical, and hydraulic systems to enhance the production efficiency.
2. The 45° integral slant bed structure guarantees the workpiece is closer to the operator and smooth chip discharge. Crafted from high-quality resin sand, the bed has excellent rigidity and shock resistance.
3. The machine with an electrical cabinet has good sealing performance and uses the heat exchanger to ensure normal operation in a high-temperature and high-humidity environment.
4. Hydraulic pressure is adjusted via panel knobs with dial display, ensuring safe and convenient operation.

Description of the basic structural features of the machine tool

1 Bed

The bed features an integrated 45° slant bed circular cavity cast iron structure, ensuring heavy-duty cutting capability. The bed is cast using high-quality resin sand, offering excellent rigidity, vibration resistance, and smooth chip removal.

2 Spindle Housing

The spindle housing bearings utilize a combination of double-row cylindrical roller bearings and double-direction thrust angular contact bearings, providing high rigidity. The structural design incorporates measures to reduce spindle thermal deformation, ensuring the spindle maintains relative stability along its axis during prolonged operation.
structural design to minimize thermal deformation of the spindle, ensuring relative stability of the spindle axis during prolonged operation.

3 Feed System

The X and Z-axis servo motors are directly connected to precision ball screws via elastic couplings, offering high precision. The ball screws are fixed at both ends, enhancing
the support stiffness of the bearing seats, thereby minimizing distortion and deformation caused by frequent high-speed positioning and heavy cutting. The bearings are specialized 60-degree angular contact precision bearings for ball screws, offering high speed and precision.

4 Slide

The transmission system uses imported Taiwanese linear rolling guides to meet high-speed and efficient requirements, reducing friction resistance and temperature-induced deformation, thereby improving processing precision and ensuring long-term stability of cutting accuracy.

5 Tool Turret

The series of fully functional lathes are equipped with 8-12 servo-hydraulic tool turrets. They feature fast indexing positioning, high indexing accuracy, and excellent turning rigidity.
The tool turret is equipped with a central coolant supply function, providing high coolant pressure. The coolant tank capacity is sufficient to prevent coolant flow interruption during machining, and it is equipped with a filtration system for high filtration precision.

6 Hydraulic System

Hydraulic chuck clamping, releasing, and tailstock sleeve extension/retraction can be controlled by both program commands and foot pedal operations, offering convenience and efficiency. Hydraulic pressure adjustment is controlled via panel-mounted rotary knobs with dial displays, ensuring safe and convenient operation.
Hydraulic chuck clamping, releasing, and tailstock sleeve extension/retraction can be controlled via foot pedal in addition to program control, offering convenience and efficiency. Hydraulic pressure adjustments are performed using panel-mounted rotary knobs with dial displays, ensuring safe and convenient operation.

7 Lubrication System

The machine tool employs an automatic centralized lubrication system with timed and metered oil supply. The oil distributor adjusts supply pressure according to the pressure requirements of different lubrication points to ensure adequate lubrication for all lubrication points (such as guideways, inserts, lead screws, nuts, etc.).
A lubrication system alarm function is also provided.

8 Cooling System

The slant bed CNC lathe features full guideway protection, with the coolant tank and chip conveyor separated from the main machine to prevent thermal cutting effects from affecting machine accuracy.

9 Electrical System

The machine tool's electrical unit cabinet has excellent sealing performance and is equipped with an electrical cabinet air conditioner to ensure the CNC system operates normally in high-temperature and high-humidity environments.

10 Limit Collision Prevention Measures

Rubber buffer collision prevention devices are installed on the bearing seats at the positive and negative limit travel positions of the axes to provide final protection for the double-nut ball screw pairs against damaging collisions under abnormal conditions.

11 Safety Protection

The machine tool features a fully enclosed internal sheet metal design and a fully enclosed external sheet metal design, with sheet metal thickness of no less than 2mm. During operation, the machine tool remains free from deformation and vibration.
Internal protective covers made of stainless steel are used for the guideways, lead screws, nuts, and bearings. Chip removal and debris cleanup are convenient.

Main Parts of Slant Bed Lathe

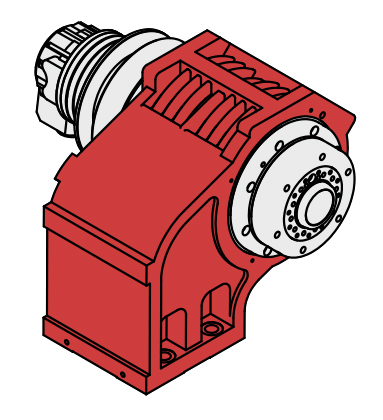

	Built-In Spindle (Optional) The spindle is driven by a high-torque, high-efficiency, and high-performance permanent magnet synchronous motor. Additionally, P4 double-row short cylindrical roller bearings are adopted. This setup ensures the spindle's high precision, rigidity, and stability. Spindle Speed: 5000rpm Spindle Power: 12kW Spindle Taper Hole: Ф56mm

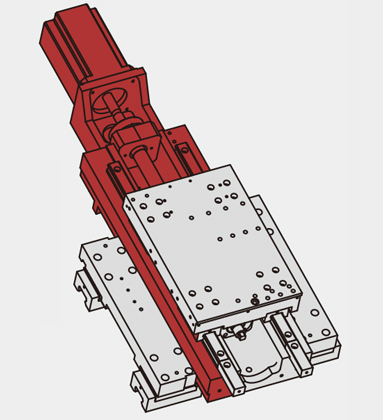

Slide The horizontal slide is 730mm long, can be installed with multiple rows of gang type tool Holders with fast tool change speed and high precision, can be equipped with high-speed live milling tool or servo turret (according to user requirements) for the complex products. X/Z-axis Travel: 160/300mm X/Z-axis Rapid Traverse Speed: 25/25m/min

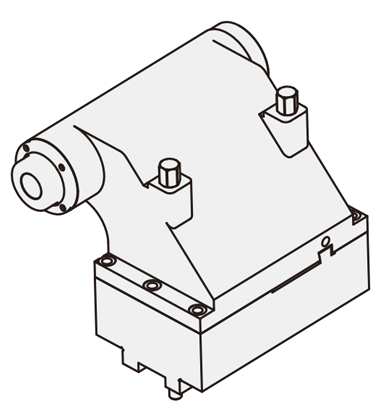

	Hydraulic Tailstock The automatic built-in hydraulic tailstock is precise, stable, efficient, and safe. The rigorously designed installation with a stable hydraulic system guarantees a high degree of machine alignment. Tailstock Sleeve Diameter: Ф65 Tailstock Travel: 70mm

Slant CNC Lathe C320K TT Features

Adopts 45° Machine Bed, High Rigidity with Hydraulic Servo 8/12 Tool Post Turret, with Servo Spindle, Hydraulic Through Chuck, and Hydraulic Tailstock, suitable for the Short Shaft and Small Plate Workpiece Processing.

C320K TT  Slant Lathe Specification

Please note that there may be slight differences in appearance and parameter depending on your options.

Tool Interferogram

Slant CNC Lathe C320K TT Application
