The VTC50 high-precision vertical CNC lathe is capable of turning various threads, arcs, cones, and the inner and outer surfaces of rotating bodies, meeting the high-speed cutting requirements for both ferrous and non-ferrous metal materials. It is primarily used for processing large and heavy workpieces with significant radial dimensions and relatively small axial dimensions, as well as those with complex shapes. Such as the threads, arcs, and inner and outer curved surfaces, end faces, and grooves of various discs, wheels, and sleeves. Additional devices can also be installed for milling and grinding operations, making it suitable for the processing of parts in industries such as motors, valves, automobiles, motorcycles, bearings, and water pumps.
|
Maximum Machining Diameter: 500mm |
|
Maximum Machining Height: 390mm |
|
Chuck Size: 12" inch |
DETAIL PARAMETERS
VIDEO DISPLAY
This machine tool is equipped with an extended cylindrical roller guide rail with very strong cutting performance. The spindle speed can reach 3000rpm, and the X and Z axis rapid running speed can reach 25m/min, which can achieve high-speed and efficient processing.
The vertical carriage of the machine tool is equipped with a gas-liquid balance system, which uses high-pressure nitrogen and hydraulic oil to balance the weight of the carriage and turret, allowing the machine tool to operate at high speed and precision, reducing the load on the servo motor, increasing the accuracy and life of the machine tool, and preventing There are dangers such as the carriage falling when an unexpected power outage occurs.
1. Built on cutting-edge technologies at home and abroad, the vertical lathe VTC50 is economical, efficient, energy-saving, and environmentally friendly, the first choice for machining complex disc and short shaft parts in automobile, water pump, motor, and other industries.
2. This machine adopts an extended heavy-duty roller linear guideway, which has good cutting rigidity, dynamic response performance, good precision retention, and a long service life.
3. This machine can turn various threads, arcs, cones, and inner and outer curved surfaces of rotating parts. It can also meet the speed requirement for cutting ferrous and non-ferrous metal materials.
4. This machine is mainly used for machining large and heavy workpieces with large radial dimensions, small axial dimensions, and complex shapes. Additional devices can be installed for milling or grinding.
1. The machine tool features a high-strength cast iron base and columns, optimized through finite element analysis to achieve optimal modal characteristics and mechanical distribution, ensuring excellent vibration damping. Multiple aging and heat treatment processes ensure the machine tool maintains optimal mechanical performance and structural stability over extended periods.
2. The machine tool adopts an integrated spindle structure with a high-rigidity bearing layout, meeting both high rigidity and high-speed requirements. The clearance between the spindle unit and the bed is ≤0.02mm, providing excellent vibration damping, preventing foreign object penetration, and ensuring stable operation even in harsh machining environments.
3. The machine tool is equipped with extended heavy-duty linear roller guides, offering excellent cutting rigidity and dynamic response performance, with good precision retention and a long service life.
4. The X and Z axes utilize precision ball screw pairs and specialized ball screw bearings, meeting the requirements for high rigidity and high-precision cutting. The ball screw supports employ a pre-tensioned structure, significantly reducing the impact of thermal deformation on precision during prolonged machine operation.
5. The vertical saddle of the machine tool is equipped with a pneumatic-hydraulic balancing system, which uses high-pressure nitrogen and hydraulic oil to balance the weight of the saddle and tool turret. This enables the machine tool to achieve high-speed, high-precision operation, reduces the load on the servo motor, extends the machine tool's precision lifespan, and prevents dangerous situations such as the saddle dropping in the event of an unexpected power outage.
![]() |

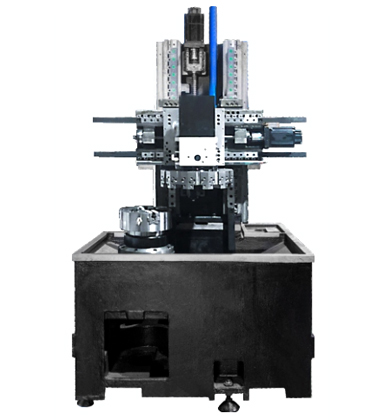

Bed Features1. The bed features excellent shock absorption due to its high-strength inoculated cast iron construction. 2. One of the prominent bed features is the large chip discharge opening with a wide angle, which effectively dissipates cutting heat. 3. The bed features a rigid structure and good precision retention, thanks to the finite element analysis(FEA) and proper rib layout. |

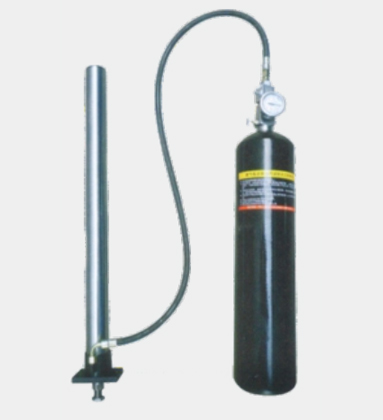

Nitrogen Balance System1. The high-pressure nitrogen in the accumulator is used to balance the slide weight, which enables high-speed and high-precision machining, reduces the servo motor load, and maintains the machine precision in the long run. 2. The balancer requires no power system, which is energy-saving and environmentally friendly. |
![]() |
![]() |

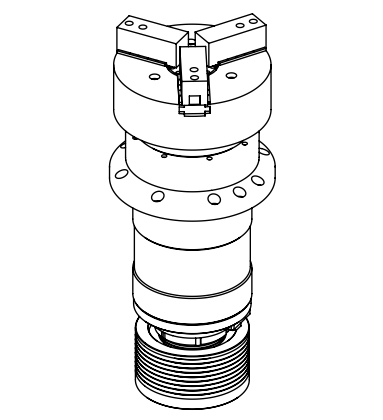

High-Performance Integrated Unit Spindle1. The integrated unit spindle meets the machine tool's demands for high rigidity, speed, and precision simultaneously. 2. With a 0.02mm gap from the machine bed and a large contact area, the spindle features high rigidity and good shock absorption. 3. The spindle has a tight seal against foreign objects, ensuring stable operation in harsh machining conditions. Spindle Speed: 3000rpm Spindle Power: 15kW |
Vertical Machining Lathe VTC50, with Hydraulic Servo Turret, Hydraulic Chuck, High Rigidity and High Precision, suitable for the Automobile, Water Pump, Motor and other Complex Plate and Short Shaft Workpiece Processing.
Standard |
Optional |
1. SIEMENS 808D Advanced Control System |
1. FANUC 0i-TF Plus Control System |
2. A2-8 |
2. GSK 988TA Absolute Control System |
3. Servo Spindle |
3. 12 Post Driven Tool Turret |
4. Hydraulic None Through Chuck 12 inch |
4. Oil Skimmer |
5. Hydraulic Servo 12 Tool Post Turret |
5. Chip Conveyor |
6. No Tailstock |
|
7. Roller Linear Guideway |
Configuration | VTC50 | ||
Machining Capacity | Maximum Swing Over Bed | φ/mm | 550 |
Max Machining Height | mm | 390 | |
Max Machining Diameter | φ/mm | 500 | |
Servo Spindle | Spindle Type | GB59001 | A2-8 |
Spindle Speed Range | r/min | 50-3000 | |
Spindle Shift Mode | Servo | ||
Spindle Output Torque | N·m | 300 | |
Main Motor Power | kW | 15 | |
Chuck Type | Hydraulic None Through Chuck | ||
Chuck Size | inch | 12" | |
Feed Rate | Rapid Traverse Speed On X-axis | m/min | 25 |
Rapid Traverse Speed On Z-axis | m/min | 25 | |
Servo Motor Torque On X-axis | N·m | 10 | |
Servo Motor Torque On Z-axis | N·m | 15 | |
X-axis Travel | mm | 255 | |
Z-axis Travel | mm | 390 | |
Guideway Type | Roller Linear Guideway | ||
Turret | Turret Type | Hydraulic Servo 12 Tool Post Turret | |
Turning Tools/Boring Bar Size | mm | 25×25/φ40 | |
Power Source | Total Rated Power | KVA | 25 |
Total Rated Current | A | 52 | |
Dimension | Machine Weight | kg | 5050 |
Machine Dimension | L×W×H(mm) | 1600×1950×2450 |
Please note that this parameter and appearance are subject to change without notice, thanks.
