CJK6130L CNC Horizontal Lathe Machine

CJK6130L CNC Horizontal Lathe Machine Introduction

1. The CJK6130L is a small-sized lathe, which is suitable for the high-efficiency machining of high-precision and complex small rotary parts in industries such as instrumentation, electronics, medical devices and aviation.
2. X/Z-axis servo motors are directly connected to the precision ball screw through flexible couplings. The rigidity of mounting base is improved to minimize the screw deformation caused by frequent, high-speed positioning orheavy cutting.
3. Full guideway protection is used. The plastic coating of the guideway also improves the wear resistance and increases the running speed of the machine.
4. Full guideway protection also ensures the machine precision and prolongs the service life.Full cover protection prevents cutting liquid from coming out.
5. Collect as the standard. The high-speed rotary cylinder and chucks are optional.
6. It has functions such as turning outer cylindrical surfaces, conical surfaces, and circular arcsurfaces, as well as grooving and threading.

Key Features of CJK6130L CNC Horizontal Lathe include:

1. Integral bed base, high rigidity.
2. The spindle adopts domestic high-quality angular contact bearings, which are paired with three in the front and two in the back. It has high speed, high precision, low noise and high rigidity.
3. The X and Z-axis servo motors are directly connected to the precision ball screw through elastic couplings, with high precision. Both ends of the screw are fixed, which improves the support stiffness of the support base, enables frequent high-speed positioning, and eliminates wire problems caused by heavy cutting. Bar distortion is minimized.
4. Versatility: This lathe supports a wide range of machining operations, including turning, facing, threading and grooving, making it suitable for a variety of applications in different industries.
5. The X and Z-axis servo motors are directly connected to the precision ball screw through elastic couplings, achieving high-precision gap-free transmission. The machine tool adopts high-precision linear guide rails in the Z direction and dovetail hard rails in the X direction. The movement speed is fast and the processing accuracy is high.
6. The spindle adopts frequency conversion speed regulation.
7. Centralized automatic lubrication can extend the service life of the locomotive.
8. The feed system is driven by a servo motor and the ball screw has high transmission accuracy.
9. The lathe uses X-direction dovetail hard, Z-direction linear guide rails, and the lathe has full guide rail protection to ensure the accuracy of the machine tool and extend its service life. The machine tool cover is fully protected to prevent cutting fluid from splashing out.

Basic structural characteristics of machine tools

1 Machine bed

The flat bed structure adopts the design of high rigidity, high-load Z-direction roller linear guides, and the design of X-direction high-load dovetail guides. The design is optimized for the dynamic performance of the machine tool during operation, and it resists warping during heavy cutting. Anti-seismic, smooth processing operation, higher processing accuracy and better finish.

2 Spindle box

The spindle box bearing adopts an angular contact bearing design with high rigidity. The heat dissipation adopts a corresponding structural design to reduce the thermal deformation of the spindle, so that the spindle can maintain the relative stability of the spindle axis during long-term operation.

3 Feeding system

The X and Z-axis servo motors are directly connected to the precision ball screw through elastic couplings, with high precision. Both ends of the screw are fixed, which improves the support stiffness of the support base and prevents frequent high-speed positioning and avoids distortion of the screw caused by heavy cutting. Deformation is reduced to a minimum, and the bearings adopt a pair of precision bearings with 60-degree angular contact dedicated to the screw, with high speed and high precision.

4 Slide and turret

The middle slide of the machine tool is designed with a high-load dovetail guide rail and a high-quality, high-rigidity Gang type. The processed products are of high quality and high processing efficiency.
The turning rigidity and dynamic performance of the middle carriage are optimized to improve the service life and turning rigidity of the machine tool when processing valve body parts.

5 Hydraulic system

In addition to program control, the clamping and loosening of the hydraulic chuck and the expansion and contraction of the tailstock sleeve can all be controlled by foot pedal, which is convenient and fast.
Hydraulic pressure adjustment adopts panel-type twist operation and dial display, making adjustment safe and convenient.

6 Lubrication device

The machine tool adopts an automatic centralized lubrication system to supply oil regularly and quantitatively. The oil distributor adjusts the oil supply pressure according to the pressure requirements of different lubricating parts to ensure that any lubricating parts (such as guide rails, inserts, screws, nuts and other friction pairs) can get the oil.
Adequate lubrication and set the lubrication system alarm function.

7 Cooling system

The inclined bed CNC lathe adopts full guide rail protection, and the cooling box and chip conveyor are separated from the main machine to ensure that the accuracy of the machine tool is not affected by thermal cutting.

8 Electrical System

The electrical unit cabinet of the machine tool has good sealing and is equipped with an air conditioner to ensure the normal operation of the CNC system in the high-temperature and high-humidity environment of the machine tool.

9 Extreme anti-collision measures

The bearing seats at the extreme travel positions in the positive and negative directions of the shaft are equipped with rubber buffer and anti-collision devices to provide final protection for the double-nut ball screw pair from damaging impacts under abnormal circumstances.

10 Safety protection

Fully protective inner sheet metal design, and fully surrounded outer sheet metal design. The thickness of the sheet metal is not less than 1.5 mm.

Main Parts of Horizontal Lathe Machine

	Spindle High-quality angular contact bearings (three in the front and two at the rear) and the main servo motor are adopted, It features high speed, high precision, low noise, high rigidity, high torque, and long-term stability of heavy cutting precision. Spindle Speed: 3000rpm Spindle Power: 3.7kW Spindle Taper Hole: Ф48mm

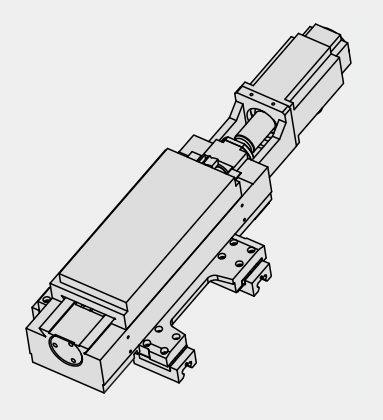

X-axis: Hard Guideway / Z-axis: Linear Guideway X/Z-axis servo motors are directly connected to the precision ball screws through flexible couplings to achieve high-precision gapless transmission. Z-axis use high-precision linear guideway, X-axis uses dovetail hard guideway, enabling a fast moving speed and high machining accuracy. X/Z-axis Travel: 220/220mm X/Z-axis Rapid Traverse Speed: 12/20m/min

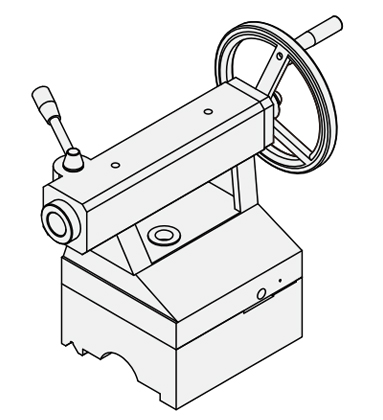

	Manual Tailstock Tailstock Sleeve Diameter: Φ54mm Tailstock Sleeve Travel: 150mm

Flat Bed Lathe, standard with Hydraulic Through Chuck, Gang Type, Hard Guideway, and Manual Tailstock, suitable for the High Speed Processing of Short Shaft and Small Plate Workpiece.

CJK6130L CNC Horizontal Lathe Specification

Please note that there may be slight differences in appearance and parameter depending on your options.

Tool Interferogram

CNC Horizontal Lathe Machine Application
