CDS100/CDS100M/CDS100P New CNC Slant Bed Lathe with Bulit-in Spindle

CDS 100 Series New CNC Slant Bed Lathe Introduction

The lathe is equipped with advanced CNC (Computer Numerical Control) technology that allows precise control of the machining process, resulting in increased accuracy and efficiency. The tilting bed design improves chip evacuation and provides easier access to the workpiece, increasing overall productivity.

1. The lathe uses an integrated hydraulic servo turret with high positioning accuracy, fast tool change time, and minimal deformation under heavy cutting.
2. The linear rolling guideway enables high-speed, high-efficiency operation. It reduces friction, temperature-rise deformation, boosts processing accuracy, and ensures long-term cutting accuracy stability.
3. X/Z-axis servo motors are directly connected to the precision ballscrew through flexible couplings, and the screws are fixed at both ends. The rigidity of mounting base is improved to minimize the screw deformation caused by frequent, high-speed positioning or heavy cutting.. A pair of 60° angular contact precision bearings are used for high speed and precision.
4. Hydraulic pressure is adjusted via panel knobs with dial display, ensuring safe and convenient operation.
5. Full-guideway protection is provided. The cooling tank and chip conveyor are separated from the main machine to ensure that the machine tool accuracy is not affected by heat generated during cutting.

How to differentiate between CDS100, CDS100M and CDS100P

The CDS100 series is available in different variants - CDS100, CDS100M and CDS100P - each meeting specific requirements:
1. CDS100: This model offers standard precision turning capabilities and is suitable for a variety of machining tasks. It offers high accuracy and reliability, making it ideal for general machining applications.
2. CDS100M: The “M” model is tailored for high-speed machining operations, providing faster cutting speeds and shorter cycle times. It is equipped with optimized features to maximize productivity in demanding manufacturing environments.
3. CDS100P: The “P” model focuses on versatility and flexibility, offering programmable features and customization options to suit different processing needs. It can be easily integrated into automated production systems to increase efficiency.
Key features of the CDS100 Series include rigid construction for stability, high spindle speeds for efficient material removal, and user-friendly CNC controls for intuitive operation. Additionally, it features advanced safety features to ensure operators are protected during operation.

Description of the basic structural features of the Lathe machine tool

1, Bed

The bed adopts an integrated high-low rail bed design, with a thick-walled, multi-ribbed, multi-cavity structure to ensure heavy cutting capabilities. The bed is cast with high-quality resin sand, with good rigidity, good shock resistance, and smooth chip removal.

2, Spindle box

The spindle bearings use high-quality, high-precision bearings and a servo synchronous electric spindle, which provides high torque and stable output. The spindle box bearings use double-row cylindrical roller bearings and double-direction thrust angular contact bearings, which provide high rigidity. The heat dissipation adopts a structural design that reduces the thermal deformation of the spindle, enabling the spindle to maintain the relative stability of the spindle axis during long-term operation.

3, Feed system

The X and Z axis servo motors are directly connected to the precision ball screw through elastic couplings, with high precision. The two ends of the screw are fixed, which improves the support stiffness of the support seat, minimizes the distortion of the screw caused by frequent high-speed positioning and heavy cutting, and the bearings use 60-degree angular contact pairs of precision bearings for screws, with high speed and high precision.

4, Slide

The transmission adopts imported linear rolling guides from Taiwan to meet the requirements of high speed and high efficiency, reduce friction resistance and temperature rise deformation, improve processing accuracy, and ensure the long-term stability of cutting processing accuracy.

5, Turret

The high-rigidity hydraulic servo turret is adopted. Through the servo system optimization compensation, it cooperates with the servo spindle to realize multi-axis linkage, which can complete spindle positioning, rigid tapping, curved surface milling and other functions, greatly enriching the functions of the machine tool, improving the adaptability of the machine tool, and meeting the processing needs of various parts.

6, Hydraulic system

In addition to program control, the clamping, loosening and telescopic extension of the hydraulic chuck and the tailstock sleeve can be controlled by foot, which is convenient and fast. Hydraulic pressure adjustment adopts panel-type rotary operation, dial display, safe and convenient adjustment.

7, Lubrication device

The machine tool adopts an automatic centralized lubrication system, with timed and quantitative oil supply. The oil distributor adjusts the oil supply pressure according to the pressure requirements of different lubrication parts to ensure that any lubrication parts (such as guide rails, inserts, screws, nuts and other friction pairs) can be fully lubricated, and the lubrication system alarm function is set.

8, Cooling system

The inclined bed CNC lathe adopts full guide rail protection, and the cooling box and chip conveyor are separated from the main machine to ensure that the machine tool accuracy is not affected by thermal cutting.

9, Electrical system

The machine tool electrical unit cabinet has good sealing performance and is equipped with an electrical cabinet air conditioner to ensure that the CNC system of the machine tool works normally under high temperature and high humidity environment.

10, Extreme anti-collision measures

The bearing seats at the extreme travel positions of the positive and negative directions of the axis are equipped with rubber buffer anti-collision devices to provide the final protection for the double nut ball screw pair from loss collision under abnormal conditions.

11, Safety protection

Fully protected inner sheet metal design and fully enclosed outer sheet metal design. The machine tool does not deform or vibrate when working. The inner protection guide rail, screw rod, nut and bearing are made of stainless steel telescopic cover. It is convenient to remove chips and clean machine chips.

Main Parts of Slant Bed Lathe

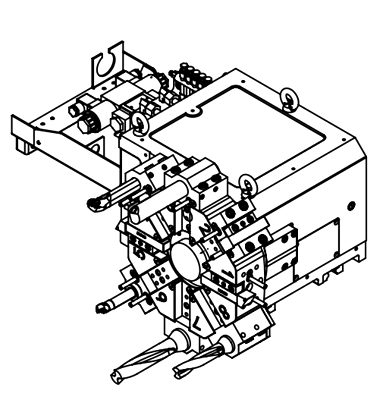

Integrated Servo Turret The integrated turret has high structural rigidity and short tool-change time. These features reduce assembly accuracy deviation, ensure the accuracy of the machine tool, and improve processing efficiency.

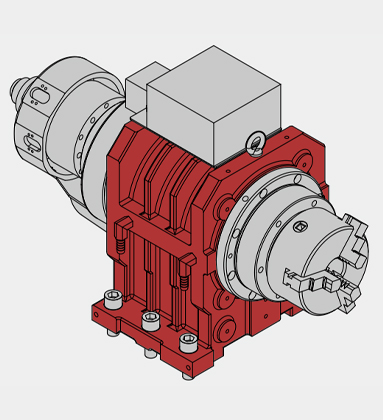

	Built-In Spindle The spindle is driven by a high-torque, high-efficiency, and high-performance permanent magnet synchronous motor. Additionally, P4 double-row short cylindrical roller bearings are adopted. This setup ensures the spindle's high precision, rigidity, and stability. Spindle Speed: 5000rpm Spindle Power: 12.3kW Spindle Taper Hole: Ф56mm

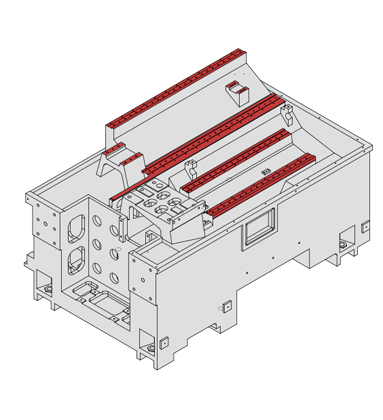

Guideway of the Bed The bed guideway adopts the 30° high-low rail structure used in Japanese-style machine tools, ensuring the rigidity, precision, and stability of the machine during heavy-cutting operations. The automated loading and unloading unit (optional) is integrated with the machine, significantly reducing the floor space. X/Z-axis Travel: 155/362mm X/Z-axis Rapid Traverse Speed: 25/30m/min

New CNC Slant Bed Lathe CDS 100 Series Feature

Adopts 30° Machine Bed, High Rigidity with Hydraulic Servo 8 Tool Post Turret, with Built-in Spindle(max spindle speed 5000rpm), Hydraulic Through Chuck, and Servo Programmable Tailstock, Small Land Occupation, suitable for the Short Shaft and Plate Workpiece Processing.

CDS 100 New Slant Bed Lathe Specification

Please note that there may be slight differences in appearance and parameter depending on your options.

Tool Interferogram

CDS 100M Slant Bed Lathe Specification

Please note that there may be slight differences in appearance and parameter depending on your options.

Tool Interferogram

CDS 100P CNC Slant Bed Lathe Specification

Please note that there may be slight differences in appearance and parameter depending on your options.

Tool Interferogram

CDS 100 Series New CNC Slant Bed Lathe Application
