C500K MSY/C500K/C500K With Sub-Spindle Heavy Cutting Slant Bed CNC Lathe

C500K MSY/C500K/C500K With Sub-Spindle CNC Slant Bed Lathe For Heavy Cutting Lathe

Maximum Machining Diameter: 430mm

Maximum Machining Length: 650mm

Chuck Size: 10" inch

  • DETAIL PARAMETERS

  • VIDEO DISPLAY

C500K Slant Bed CNC Lathe Introduction

The slant bed cnc lathe C500K series adopt an integrated 45° inclined bed and circular cavity cast iron structure to ensure heavy cutting capabilities. The bed is cast with high-quality resin sand, which has good rigidity, good shock resistance, and smooth chip removal.

The spindle box bearing adopts double-row cylindrical roller bearings and bidirectional thrust angular contact bearings, which have high rigidity. The heat dissipation adopts a corresponding structural design to reduce the thermal deformation of the spindle so that the spindle can maintain the relative stability of the spindle axis during long-term operation.


1. The lathe uses an hydraulic servo turret or Y-axis lifted driven tool turret with high positioning accuracy, fast tool change time, and minimal deformation under heavy cutting.
2. The spindle box bearings of the lathe adopt high-rigidity double-row cylindrical roller bearings in the design process, and measures are taken to reduce the thermal deformation of the spindle. This enables the spindle to maintain the relative stability of the spindle axis during long-term operation.
3. The transmission system uses linear roller guideways imported from Taiwan to meet the requirements of high speed and high efficiency. It reduces friction resistance and deformation caused by temperature rise, improves the machining accuracy, and ensures the long-term stability of the cutting machining accuracy.
4. X/Z-axis servo motors are directly connected to the precision ball screw through flexible couplings, and the screws are fixed at both ends. The rigidity of mounting base is improved to minimize the screw deformation caused by frequent, high-speed positioning or heavy cutting. A pair of 60° ángular contact precision bearings are used for high speed and precision.

Description of the basic structural features of the machine tool

1 Bed

The bed features an integrated 45° slant bed circular cavity cast iron structure, ensuring heavy-duty cutting capability. The bed is cast using high-quality resin sand, offering excellent rigidity, vibration resistance, and smooth chip removal.

2 Spindle Housing

The spindle housing bearings utilize a combination of double-row cylindrical roller bearings and double-direction thrust angular contact bearings, providing high rigidity. The structural design incorporates measures to reduce spindle thermal deformation, ensuring the spindle maintains relative stability along its axis during prolonged operation.
structural design to minimize thermal deformation of the spindle, ensuring relative stability of the spindle axis during prolonged operation.

3 Feed System

The X and Z-axis servo motors are directly connected to precision ball screws via elastic couplings, offering high precision. The ball screws are fixed at both ends, enhancing
the support stiffness of the bearing seats, thereby minimizing distortion and deformation caused by frequent high-speed positioning and heavy cutting. The bearings are specialized 60-degree angular contact precision bearings for ball screws, offering high speed and precision.

4 Slide

The transmission system uses imported Taiwanese linear rolling guides to meet high-speed and efficient requirements, reducing friction resistance and temperature-induced deformation, thereby improving processing precision and ensuring long-term stability of cutting accuracy.

5 Tool Turret

The series of fully functional lathes are equipped with 12 servo-hydraulic tool turrets. They feature fast indexing positioning, high indexing accuracy, and excellent turning rigidity.
The tool turret is equipped with a central coolant supply function, providing high coolant pressure. The coolant tank capacity is sufficient to prevent coolant flow interruption during machining, and it is equipped with a filtration system for high filtration precision.

6 Hydraulic System

Hydraulic chuck clamping, releasing, and tailstock sleeve extension/retraction can be controlled by both program commands and foot pedal operations, offering convenience and efficiency. Hydraulic pressure adjustment is controlled via panel-mounted rotary knobs with dial displays, ensuring safe and convenient operation.
Hydraulic chuck clamping, releasing, and tailstock sleeve extension/retraction can be controlled via foot pedal in addition to program control, offering convenience and efficiency. Hydraulic pressure adjustments are performed using panel-mounted rotary knobs with dial displays, ensuring safe and convenient operation.

7 Lubrication System

The machine tool employs an automatic centralized lubrication system with timed and metered oil supply. The oil distributor adjusts supply pressure according to the pressure requirements of different lubrication points to ensure adequate lubrication for all lubrication points (such as guideways, inserts, lead screws, nuts, etc.).
A lubrication system alarm function is also provided.

8 Cooling System

The slant bed CNC lathe features full guideway protection, with the coolant tank and chip conveyor separated from the main machine to prevent thermal cutting effects from affecting machine accuracy.

9 Electrical System

The machine tool's electrical unit cabinet has excellent sealing performance and is equipped with an electrical cabinet air conditioner to ensure the CNC system operates normally in high-temperature and high-humidity environments.

10 Limit Collision Prevention Measures

Rubber buffer collision prevention devices are installed on the bearing seats at the positive and negative limit travel positions of the axes to provide final protection for the double-nut ball screw pairs against damaging collisions under abnormal conditions.

11 Safety Protection

The machine tool features a fully enclosed internal sheet metal design and a fully enclosed external sheet metal design, with sheet metal thickness of no less than 2mm. During operation, the machine tool remains free from deformation and vibration.
Internal protective covers made of stainless steel are used for the guideways, lead screws, nuts, and bearings. Chip removal and debris cleanup are convenient.


Main Parts of Slant Bed Lathe

Spindle


The spindle box bearing features a structure of double-row short cylindrical roller bearings. This configuration enables it to achieve high precision and rigidity, thereby ensuring the long-term precision and stability during heavy-duty cutting operations.
Spindle Speed: 2500rpm
Spindle Power: 15kW
Spindle Taper Hole: Φ86mm

Headstock


Improvements are made to the heat dissipation air duct and heat sink of the spindle headstock, reducing the temperature rise of the spindle box by 15%.

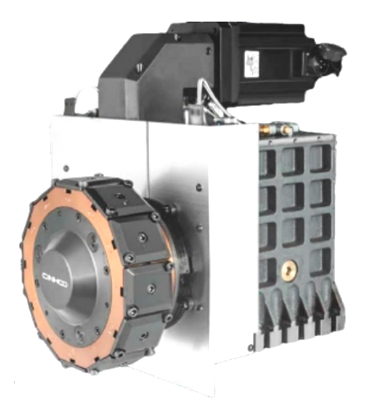

Turret with Y-axis Function (Optional)


It can significantly enhance the processing capability for complex workpieces and improve the processing accuracy of parts in multiple machining projects. The indexing of the cutter head is driven by a servo motor. Tool changing is executed in the nearest directions, featuring high speed and high efficiency. It has high positioning accuracy and repeat positioning accuracy, as well as high rigidity and stability.

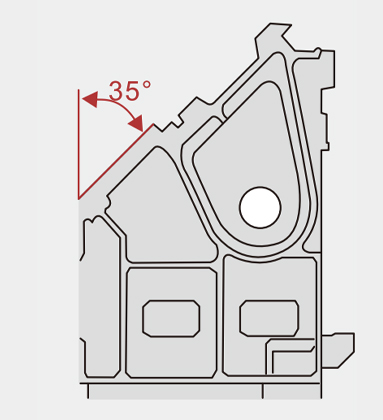

35° Integrally Slant Bed Structure


This structure ensures high stability and rigidity during the machine tool's operation, as well as the stability of mass-produced product quality. With multiple aging treatments, the stability and rigidity of the machine tool are significantly enhanced.

Slant Bed CNC Lathe C500K Feature

Adopts 35°Machine Bed, High Rigidity with Hydraulic Servo 12 Tool Post Turret, with Servo Spindle, Hydraulic Through Chuck, and Hydraulic Tailstock, suitable for the Heavy Cutting Shaft and Plate Workpiece Processing.

C500K MSY is Built-in Spindle with Y-Axis 12 Post Driven Tool Turret BMT55.

Standard

Optional

1. SIEMENS 808D Advanced Control System

1. FANUC 0i-TF Plus Control System

2. A2-8

2. SIEMENS 828D Basic Control System

3. Servo Spindle

3. SYNTEC 22TB Control System

4. Hydraulic Through Chuck 10inch

4. GSK 988TA Absolute Control System

5. Hydraulic Servo 12 Tool Post Turret

5. Built-in Spindle(C500K MSY)

6. Hydraulic Tailstock

6. Hydraulic Through Chuck 8 inch(C500K MSY)

7. Roller Linear Guideway

7. Hard Guideway/Linear Guideway(C500K MSY)

8. Y-Aixs Lifed 12 Post Driven ToolTurret(C500K MSY)

9. RENEISHAWAuto Tool Setter

10. Auto BarFeeder

11. Oil Skimmer

12. Chip Conveyor

13. Servo Programmable Tailstock(Tailstock Travel: 600mm)

C500K and C500KMSY Slant Bed Lathe Specification

  Configuration C500K C500K MSY
Machining Capacity Maximum Swing Over Bed  φ/mm 500 500
Maximum Swing Over Slide φ/mm 300 300
Maximum Machining Length mm 650 550
Maximum Machining Diameter φ/mm 430 350
Maximum Diameter of Bar φ/mm 74 50
Spindle Spindle Head Type GB59001 A2-8 A2-6
Spindle Taper Hole φ/mm 86 62
Spindle Speed Range r/min 60-2500 60-4000
Spindle Shift Mode   Servo Built-in Spindle
Spindle Rated Torque N·m 220 180
Main Motor Power kW 15 17.2
Chuck Type   Hydraulic Through Chuck Hydraulic Through Chuck
Chuck Size inch 10" 8"
Feed Rate Rapid Traverse Speed On X-axis m/min 25 25
Rapid Traverse Speed On Z-axis m/min 25 25
Servo Motor Torque On X-axis N·m 18 18
Servo Motor Torque On Z-axis N·m 18 18
X-axis Travel mm 240 190
Z-axis Travel mm 680 560
Y-axis Travel mm / ±50
Guideway Type   Roller Linear Guideway Roller Linear Guideway
Turret Turret Type   Hydraulic Servo 12 Tool Post Turret Y-Axis Lifted 12 Post Driven Tool Turret (BMT55)
Tool Size mm 25×25/φ40   25×25/φ32/ER32
Tailstock Tailstock Type   Hydraulic Hydraulic
Tailstock Sleeve Diameter φ/mm 100 100
Tailstock Sleeve Travel mm 80 80
Internal Taper of Tailstock Sleeve   MT5 MT5
Power Source Total Rated Power KVA 26 26
Total Rated Current A 50 50
Dimension Machine Weight kg 5255 5300
Machine Dimension L*W*H(mm) 3320×2000×2020 3320×2000×2020

Please note that this parameter and appearance are subject to change without notice, thanks.

Tool Interferogram

C500K with Driven Tool Turret Slant Bed Lathe Specification

  Configuration C500K with Driven Tool Turret
Machining Capacity Maximum Swing Over Bed  φ/mm 500
Maximum Swing Over Slide φ/mm 300
Maximum Machining Length mm 530
Maximum Machining Diameter φ/mm 430
Maximum Diameter of Bar φ/mm 74
Servo Spindle Spindle Head Type  GB59001 A2-8
Spindle Taper Hole φ/mm 86
Spindle Speed Range r/min 60-2500
Spindle Shift Mode   Servo
Spindle Rated Torque N·m 220
Main Motor Power kW 15
Chuck Type   Hydraulic Through Chuck
Chuck Size inch 10"
Feed Rate Rapid Traverse Speed On X-axis m/min 25
Rapid Traverse Speed On Z-axis m/min 25
Servo Motor Torque On X-axis N·m 18
Servo Motor Torque On Z-axis N·m 18
X-axis Travel mm 190
Z-axis Travel mm 535
Y-axis Travel mm /
Guideway Type   Roller Linear Guideway
Turret Turret Type    12 Post Driven Tool Turret(BMT65)
Tool Size mm 25×25/φ40/ER40
Tailstock Tailstock Type   Hydraulic
Tailstock Sleeve Diameter φ/mm 100
Tailstock Sleeve Travel mm 80
Internal Taper of Tailstock Sleeve   MT5
Power Source Total Rated Power KVA 26
Total Rated Current A 50
Dimension Machine Weight kg 5300
Machine Dimension L*W*H(mm) 3320×2000×2020

Please note that this parameter and appearance are subject to change without notice, thanks.

Tool Interferogram

C500K with Sub-Spindle Slant Bed CNC Lathe Specification

  Configuration C500K MS With Sub-Spindle
Machining Capacity Maximum Swing Over Bed  φ/mm 550
Maximum Swing Over Slide φ/mm 300
Maximum Machining Length mm 480
Maximum Diameter of Bar φ/mm 50
Built-in Spindle Spindle Head Type GB59001 A2-6
Spindle Taper Hole φ/mm 62
Spindle Speed Range r/min 50-4000
Spindle Shift Mode   Built-in Spindle
Spindle Rated Torque N·m 220
Main Spindle Power kW 17.2
Sub-Spindle Power kW 12.3
Chuck Type   Hydraulic Through Chuck
Chuck Size inch 8",with Sub-Spindle Chuck 6"
Feed Rate Rapid Traverse Speed On X-axis m/min 25
Rapid Traverse Speed On Z-axis m/min 25
Servo Motor Torque On X-axis N·m 18
Servo Motor Torque On Z-axis N·m 18
X-axis Travel mm 240
Z-axis Travel mm 500
Sub-Spindle Travel mm 480
Guideway Type   Roller Linear Guideway
Turret Turret Type   12 Post Driven Tool Turret (BMT55)
Tool Size mm 25×25/φ32/ER32
Power Source Total Rated Power KVA 43
Total Rated Current A 80
Dimension Machine Weight  kg 5800
Machine Dimension L*W*H(mm) 3600×2000×2020

Please note that this parameter and appearance are subject to change without notice, thanks.

Tool Interferogram
