CDS200/CDS200L/CDS200M CNC Slant Bed CNC Lathe Machine with Bulit-in Spindle

CDS200/CDS200L/CDS200M CNC Slant Bed Lathe With Bulit-in Spindle feeding system.

Maximum Machining Diameter: 300mm

Maximum Machining Length: 370mm

Chuck Size: 8" inch

  • DETAIL PARAMETERS

  • VIDEO DISPLAY

CDS 200 Series Slant Bed CNC Lathe Machine Introduction

the X and Z axis servo motors are directly connected to the precision ball screw through elastic couplings, with high precision, and both ends of the screw are fixed, which improves the The support stiffness of the support seat minimizes the distortion and deformation of the screw caused by frequent high-speed positioning and heavy cutting. The bearings adopt a pair of precision bearings with 60-degree angular contact dedicated to the screw, which is high-speed and high-precision. The transmission uses linear rolling guides imported from Taiwan to meet high-speed and high-efficiency requirements, reduce friction resistance and temperature rise deformation, improve processing accuracy, and ensure the long-term stability of cutting accuracy. It adopts a high-rigidity hydraulic servo turret, optimizes compensation through the servo system, and cooperates with the servo spindle to achieve multi-axis linkage.


1. The synchronous built-in spindle drive promises superior output torque, and liquid cooling and air cooling are combined to ensure motor heat dissipation, guaranteeing the service life and machining precision ofthe spindle.
2. The integrated hydraulic servo turret is compact and reliably precise.
3. The bed guideway adopts a high and low rail design and is integrally cast with resin sand. With multiple aging and heat treatment processes, the machine can maintain optimal precision and rigidity for a long time.
4. Hydraulic monitoring and adjustment can be easily operated using knobs on the front panel.
5. The ergonomic machine adopts 30° internal design, which makes the workpiece closer to the human body and facilitates chip discharge(rear or side chip discharge as needed).

Description of the basic structural features of the Lathe machine tool

1, Bed

The bed adopts an integrated high-low rail bed design, with a thick-walled, multi-ribbed, multi-cavity structure to ensure heavy cutting capabilities. The bed is cast with high-quality resin sand, with good rigidity, good shock resistance, and smooth chip removal.

2, Spindle box

The spindle bearings use high-quality, high-precision bearings and a servo synchronous electric spindle, which provides high torque and stable output. The spindle box bearings use double-row cylindrical roller bearings and double-direction thrust angular contact bearings, which provide high rigidity. The heat dissipation adopts a structural design that reduces the thermal deformation of the spindle, enabling the spindle to maintain the relative stability of the spindle axis during long-term operation.

3, Feed system

The X and Z axis servo motors are directly connected to the precision ball screw through elastic couplings, with high precision. The two ends of the screw are fixed, which improves the support stiffness of the support seat, minimizes the distortion of the screw caused by frequent high-speed positioning and heavy cutting, and the bearings use 60-degree angular contact pairs of precision bearings for screws, with high speed and high precision.

4, Slide

The transmission adopts imported linear rolling guides from Taiwan to meet the requirements of high speed and high efficiency, reduce friction resistance and temperature rise deformation, improve processing accuracy, and ensure the long-term stability of cutting processing accuracy.

5, Turret

The high-rigidity hydraulic servo turret is adopted. Through the servo system optimization compensation, it cooperates with the servo spindle to realize multi-axis linkage, which can complete spindle positioning, rigid tapping, curved surface milling and other functions, greatly enriching the functions of the machine tool, improving the adaptability of the machine tool, and meeting the processing needs of various parts.

6, Hydraulic system

In addition to program control, the clamping, loosening and telescopic extension of the hydraulic chuck and the tailstock sleeve can be controlled by foot, which is convenient and fast. Hydraulic pressure adjustment adopts panel-type rotary operation, dial display, safe and convenient adjustment.

7, Lubrication device

The machine tool adopts an automatic centralized lubrication system, with timed and quantitative oil supply. The oil distributor adjusts the oil supply pressure according to the pressure requirements of different lubrication parts to ensure that any lubrication parts (such as guide rails, inserts, screws, nuts and other friction pairs) can be fully lubricated, and the lubrication system alarm function is set.

8, Cooling system

The inclined bed CNC lathe adopts full guide rail protection, and the cooling box and chip conveyor are separated from the main machine to ensure that the machine tool accuracy is not affected by thermal cutting.

9, Electrical system

The machine tool electrical unit cabinet has good sealing performance and is equipped with an electrical cabinet air conditioner to ensure that the CNC system of the machine tool works normally under high temperature and high humidity environment.

10, Extreme anti-collision measures

The bearing seats at the extreme travel positions of the positive and negative directions of the axis are equipped with rubber buffer anti-collision devices to provide the final protection for the double nut ball screw pair from loss collision under abnormal conditions.

11, Safety protection

Fully protected inner sheet metal design and fully enclosed outer sheet metal design. The machine tool does not deform or vibrate when working. The inner protection guide rail, screw rod, nut and bearing are made of stainless steel telescopic cover. It is convenient to remove chips and clean machine chips.

Main Parts of Slant Bed CNC Lathe

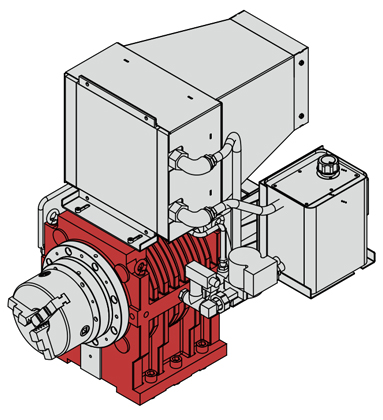

Built-In Spindle


The spindle is driven by a high-torque, high-efficiency, and high-performance permanent magnet synchronous motor. Additionally, P4 double-row short cylindrical roller bearings are adopted. This setup ensures the spindle's high precision, rigidity, and stability.
Spindle Speed: 4000rpm
Spindle Power: 18.5 kW
Spindle Taper Hole: Ф62 mm

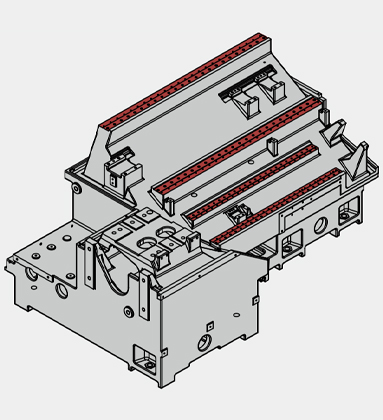

Guideway of the Bed


The bed guideway adopts the 30° high-low rail structure used in Japanese-style machine tools, ensuring the rigidity, precision, and stability of the machine during heavy-cutting operations. The automated loading and unloading unit (if selected) is integrated with the machine, significantly reducing the floor space.
X/Z-axis Travel: 190/400 mm
X/Z-axis Rapid Traverse Speed: 25/25 m/min

CNC Slant Bed CNC Lathe Machine CDS Series Feature

Adopts 30° Machine Bed, High Rigidity with Hydraulic Servo 10 Tool Post Turret, with Built-in Spindle (max spindle speed 4500rpm), Hydraulic Through Chuck, and Servo Programmable Tailstock, suitable for the Shaft and Plate Workpiece Processing.

Standard

Optional

1. SIEMENS 828D Basic Control System

1. FANUC 0i-TF Plus Control System

2. A2-8

2. GSK 988TA Absolute Control System

3. Built-in Spindle

3. RENEISHAW Auto Tool Setter

4. Hydraulic Through Chuck 8inch

4. 12 Post Driven Tool Turret(BMT55)

5. Hydraulic Servo 10 Tool Post Turret

5. Auto Bar Feeder

6. Servo Programmable Tailstock

6. Oil Skimmer

7. Roller Linear Guideway

7. Chip Conveyor

CDS200 Slant Bed CNC Lathe Machine Specification

   Configuration CDS200
Machining Capacity Maximum Swing Over Bed φ/mm 580
Maximum Swing Over Slide φ/mm 300
Maximum Machining Length mm 370
Maximum Machining Diameter φ/mm 300
Maximum Diameter of Bar φ/mm 50
Built-in Spindle Spindle Head Type GB59001 A2-6
Spindle Taper Hole φ/mm 62
Spindle Speed Range r/min 50-4500
Spindle Output Torque N·m 109
Spindle Power kW 18.5
Chuck Type   Hydraulic Through Chuck
Chuck Size inch 8"
Feed Rate Rapid Traverse Speed On X-axis m/min 30
Rapid Traverse Speed On Z-axis m/min 30
Servo Motor Torque On X-axis N·m 15
Servo Motor Torque On Z-axis N·m 15
Servo Motor Torque On Z1-axis N·m 6
X-axis Travel mm 190
Z-axis Travel mm 400
Z1-axis Travel mm 320
Guideway Type   Roller Linear Guideway
Turret Turret Type   Hydraulic Servo 10 Tool Post Turret
Turning Tools/Boring Bar Size mm 25×25/φ32(φ40 as optional)
Tailstock Tailstock Type   Servo Programmable
Tailstock Sleeve Diameter φ/mm 74
Internal Taper of Tailstock Sleeve   MT5
Power Source Total Rated Power KVA 21
Total Rated Current A 45
Dimension Machine Weight kg 3700
Machine Dimension L*W*H(mm) 2310×1820×1920

Please note that there may be slight differences in appearance and parameter depending on your options.

Tool Interferogram

CDS200L Slant Bed Lathe Machine Specification

   Configuration   CDS200L
Machining Capacity Maximum Swing Over Bed φ/mm 580
Maximum Swing Over Slide φ/mm 300
Maximum Machining Length mm 570
Maximum Machining Diameter φ/mm 300
Maximum Diameter of Bar φ/mm 50
Built-in Spindle Spindle Head Type GB59001 A2-6
Spindle Taper Hole φ/mm 62
Spindle Speed Range r/min 50-4500
Spindle Output Torque N·m 109
Main Motor Power kW 18.5
Chuck Type   Hydraulic Through Chuck
Chuck Size inch 8"
Feed Rate Rapid Traverse Speed On X-axis m/min 30
Rapid Traverse Speed On Z-axis m/min 30
Servo Motor Torque On X-axis N·m 15
Servo Motor Torque On Z-axis N·m 15
Servo Motor Torque On Z1-axis N·m 6
X-axis Travel mm 190
Z-axis Travel mm 600
Z1-axis Travel mm 520
Guideway Type   Roller Linear Guideway
Turret Turret Type   Hydraulic Servo 10 Tool Post Turret
Turning Tools/Boring Bar Size mm 25×25/φ32(φ40 as optional)
Tailstock Tailstock Type   Servo Programmable
Tailstock Sleeve Diameter φ/mm 74
Internal Taper of Tailstock Sleeve   MT5
Power Source Total Rated Power KVA 21
Total Rated Current A 45
Dimension Machine Weight kg 4000
Machine Dimension L*W*H(mm) 2510×1820×1920

Please note that there may be slight differences in appearance and parameter depending on your options.

Tool Interferogram

CDS200M CNC Slant Bed Lathe Machine Specification

   Configuration CDS200M
Machining Capacity Maximum Swing Over Bed  φ/mm 580
Maximum Swing Over Slide φ/mm 300
Maximum Machining Length mm 320 520
Maximum Machining Diameter φ/mm 200
Maximum Diameter of Bar φ/mm 50
Built-in Spindle Spindle Head Type GB59001 A2-6
Spindle Taper Hole φ/mm 62
Spindle Speed Range r/min 50-4500
Spindle Output Torque N·m 109
Main Motor Power kW 18.5
Chuck Type   Hydraulic Through Chuck
Chuck Size inch 8"
Feed Rate Rapid Traverse Speed On X-axis m/min 30
Rapid Traverse Speed On Z-axis m/min 30
Servo Motor Torque On X-axis N·m 15
Servo Motor Torque On Z-axis N·m 15
Servo Motor Torque On Z1-axis N·m 6
X-axis Travel mm 190 190
Z-axis Travel mm 350 550
Z1-axis Travel mm 320 520
Guideway Type   Roller Linear Guideway
Turret Turret Type   12 Post Driven Tool Turret(BMT55)
Turning Tools/Boring Bar Size mm 25×25/φ40/ER32
Tailstock Tailstock Type   Servo Programmable
Tailstock Sleeve Diameter φ/mm 74
nternal Taper of Tailstock Sleeve   MT5
Power Source Total Rated Power KVA 21
Total Rated Current A 45
Dimension Machine Weight kg 3700 4000
Machine Dimension L*W*H(mm) 2310×1820×1920 2510×1820×1920

Please note that there may be slight differences in appearance and parameter depending on your options.

Tool Interferogram
