C320K SLANT CNC TORTHE with gang tools

C320K CNC SLANT BEDTHE with gang tooling tools support The transverse car is 670 mm long and can be installed with multiple holders.

Maximum machining diameter: 100 mm

Maximum machining length: 220 mm

Chuck size: 6 "inches

  • DETAIL PARAMETERS

  • VIDEO DISPLAY

C320K SLANT CNC PORTO INTRODUCTION

It has the fastest tool that changes speed, high precision and operation without problems. According to user requirements, it can be configured with a high -speed power head for milling or a hydraulic tool. Tower. You can process more complex pieces. Totally protective internal sheet design and outer sheet design fully surrounded. The thickness of the sheet is not less than 2 mm. When the tool machine is working, it will not deform or vibrate. Stainless steel telescopic protectors are used for guide rails, screw rods, nuts and bearings in internal protection. Easy to remove and clean the fries to the machine.


1. This inclined bed towel is developed using international technologies with high precision, speed and rigidity. With an easy -to -use design, an elegant appearance and easy to maintain, integrate mechanical, electrical and hydraulic systems to improve production efficiency.
2. The 45 ° comprehensive inclined bed structure guarantees that the workpiece is closer to the operator and the discharge of smooth chips. Made from high quality resin sand, the bed has excellent stiffness and shock resistance.
3. The high -precision hydraulic rotary cylinder works with a spring spring to be precise and convenient, further improving production efficiency.
4. The machine with an electric cabinet has a good sealing performance that uses the heat exchanger to guarantee normal operation in a high temperature and high humidity environment.
5. Hydraulic pressure is adjusted through panel knobs with a marked screen, ensuring a safe and convenient operation.

Description of the basic structural characteristics of the machine tool

1 bed

The bed has an integrated cast iron structure of circular cavity of 45 ° circular cavity, ensuring the heavy -duty cutting capacity. The bed is molten using high quality resin sand, offering excellent rigidity, resistance to vibration and elimination of smooth chips.

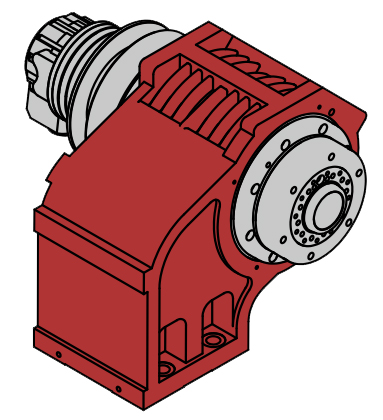

2 spindle housing

The spindle housing bearings use a combination of double -row cylindrical roller bearings and angular contact thrust bearings, providing high rigidity. The structural design incorporates measures to reduce the thermal deformation of the spindle, ensuring that the spindle maintains the relative stability along its axis during the prolonged operation.
Structural design to minimize the thermal deformation of the spindle, ensuring the relative stability of the spindle axis during prolonged operation.

3 Power system

The X and Z axis servomotores are directly connected to precision ball screws through elastic couplings, which offer high precision. Ball screws are fixed at both ends, improving
The support of the rigidity of the bearing seats, thus minimizing the distortion and the deformation caused by the frequent high speed positioning and the heavy cut. The bearings are specialized angular contact precision bearings of 60 degrees for ball screws, which offer high speed and precision.

4 slides

The transmission system uses taiwanese linear rolling guides imported to meet high speed and efficient requirements, reducing friction resistance and temperature -induced deformation, thus improving precision processing and guaranteeing long -term stability of cutting accuracy.

5 Tool Torreta

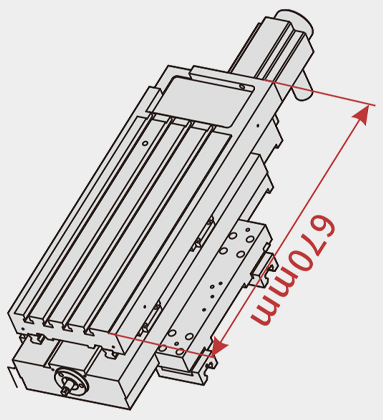

The horizontal slide has a length of 670 mm and can be equipped with multiple holders, offering the fastest, high precision and reliability tool speed. Depending on the user's requirements, it can be configured with a high speed milling spindle or a hydraulic tool turret. It is able to process complex pieces.

6 Hydraulic system

Hydraulic clamping, the extension/retraction of the manga of the burning host can be controlled both by program commands and for feet pedal operations, offering convenience and efficiency. The hydraulic pressure adjustment is controlled by rotating knobs mounted on panel with marking screens, which guarantees safe and convenient operation.
Hydraulic subjection, release, release and extension/retraction of the counterparty sleeve can be controlled by the foot pedal in addition to the control of the program, offering convenience and efficiency. Hydraulic pressure settings are performed using panel rotating knobs with dial screens, ensuring safe and convenient operation.

7 lubrication system

The tool machine uses an automatic centralized lubrication system with chronicle and measured oil supply. The oil distributor adjusts the supply pressure according to the pressure requirements of different lubrication points to guarantee adequate lubrication for all lubrication points (such as guides, inserts, lead screws, nuts, etc.).
An alarm function of the lubrication system is also provided.

8 Cooling system

The CNC lathe of the inclined bed has complete protection of the guide path, with the refrigerant tank and the chips transporter separated from the main machine to prevent the thermal cutting effects from affecting the accuracy of the machine.

9 Electrical system

The electricity unit cabinet tool has an excellent sealed performance and is equipped with an electric cabinet air conditioning to ensure that the CNC system works normally in high temperature and high humidity environments.

10 limit collision prevention measures

The rubber buffer collision prevention devices are installed in the bearing seats in the positive and negative limit travel positions of the axes to provide final protection for double nut ball screws against harmful collisions in abnormal conditions.

11 security protection

The tool machine presents a completely closed internal sheet design and a completely closed external sheet design, with a sheet thickness of no less than 2 mm. During the operation, the tool machine remains free of deformation and vibration.
Internal protective covers made of stainless steel are used for guides, lead screws, nuts and bearings. Chips elimination and debris cleaning are convenient.

Major To parts of Inclination lathe

Incorporated axis (optional)


The spindle is driven by a synchronous permanent magnet engine of high efficiency, high efficiency and high performance. In addition, dual -row short row roller roller bearings are adopted. This configuration guarantees the high precision, rigidity and stability of the spindle.
Spindle speed: 5000 rpm
Spindle power: 12kw
Tenous spindle hole: φ56 mm

Slide


The horizontal slide is 730 mm long, it can be installed with multiple rows of gang type holders with rapid speed of tool change and high precision change, it can be equipped with a high -speed live milling milling tool or turret serve (depending on the user's requirements) for complex products.
X/Z axis travel: 310/260 mm
Rapid speed of the x/z axis

Slant CNC TORNO C320K features

TOdopt the bed of the 45 ° machine, with type of gangs, hydraulic through chuck, without back cover, suitable for the processing of the workpiece of the plate.

Standard

Optional

1. Siemens 808D Advanced Control System

1. Fanuc 0i-TF Plus control system

2. A2-5

2. Syntec 22TB Control System

3. SERVO spindle

3. Absolute control system GSK 988ta

4. Hydraulic through Chuck 6 inches

4. built -in spindle

5. Type of gang

5. Reneishaw Auto Tool Setter

6. Without counterproduction

6. Automotive bar feeder

7. Roller linear guide

7. Petroleum Skimmer

8. CIPS COUNCIL

9. Fly cutter device

C320K Inclined CNC Torno Specification

Configuration C320K
Machining capacity Maximum swing on the bed φ/mm 320
Maximum balance on the slide φ/mm 140
Maximum machining length mm 220
Maximum machining diameter φ/mm 100
Maximum bar diameter φ/mm 40
Servo Spindle Spindle head type GB59001 A2-5
Spindle hole φ/mm 52
Spindle speed R/min 50-3000
Spindle change mode Servo
Spindle output torque New Mexico 84
Main motor power Kw 3.7
Chuck type Hydraulic through Chuck
Chuck size inch 6
Feed rate Rapid transverse speed on the X axis m/min 25
Rapid transverse speed on the z axis m/min 25
Torque Motor Servo on the X axis New Mexico 6
Torque Motor Servo on the Z axis New Mexico 6
X -axis trips mm 160
Z Trips Z mm 330
Guide -type type Roller linear guide
Turret Type of turret Type of gang
Giro/size tools of the boring bar mm 20 × 20/φ25
Energy source Total nominal power KVA 12
Total current qualified A 26
Dimension Machine weight kg 2000
Machine dimension L*w*h (mm) 1950 × 1520 × 1800

Keep in mind that this parameter and appearance are subject to changes without prior notice, thanks.
