160160 Medium ES Series CNC Lathe Automation Production Line

One-to-two outer truss three-axis manipulator

DETAIL PARAMETERS
VIDEO DISPLAY

CNC Lathe Automation Production Line Introduction

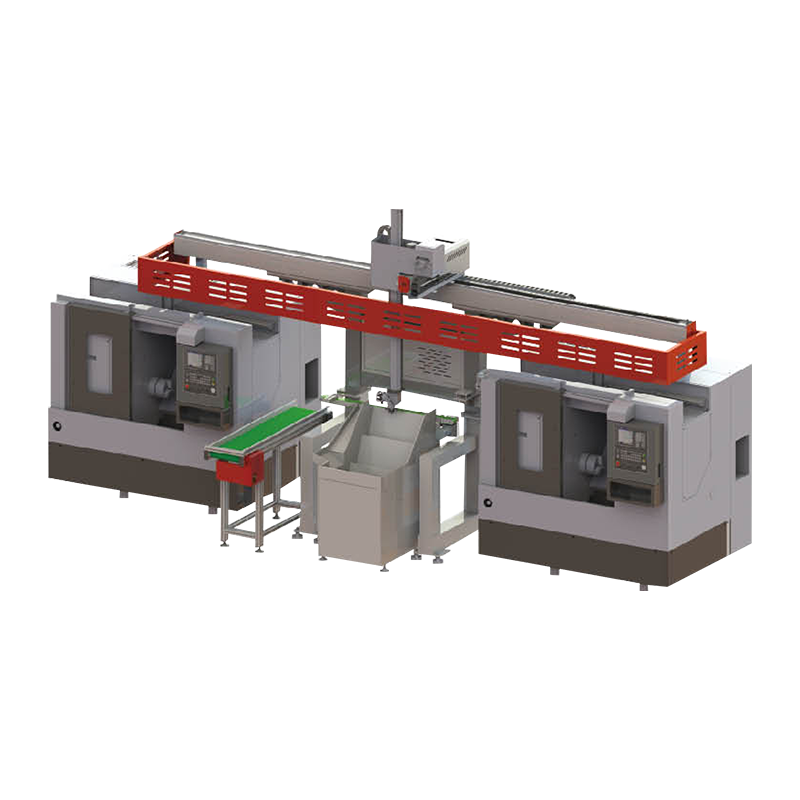

Two C46K machine tools are equipped with a three-axis manipulator with one drag and two outer frames (160160 medium-sized ES series), and the intermediate feeding silo system is used for loading. After processing, the workpiece can be unloaded by the conveyor belt, which can also prevent the workpiece from colliding and return it to its original position in the silo. Manual picking; the loading and unloading time of the robot is about (12-15)S, suitable for processing products with a weight of less than 2KG/light-sized products; the size of the machine tool including truss robot: length X width X height is about (6.2mX3.1mX3.8m).

Configuration list for the medium-sized ES series robots
	Description of the function	Brands & Features
Functional component modules	X-axis (beam) truss travel: 4400mm	160X160 linear module
	Y-axis (3rd axis) truss travel: 400mm	80X140 linear module
	Z-axis (vertical beam) truss travel: 1200mm	60X80 linear module
	X-axis (beam) moving speed: 0-120m/min Y-axis (third axis) moving speed: 0-90m/min Z-axis (vertical beam) moving speed: 0-120m/min	The range of the manipulator's moving speed
	X-axis (beam) and Z-axis (vertical beam) are driven by mobile servo motors	Delta/Baoyuan (bus absolute)
	Rack/Pinion (3 years warranty)	High-precision helical rack
	Truss linear slides	Taiwan/Shangyin/AirTAC
	One-piece cylinder jaw parts (medium series)	Taiwan/AirTAC Japan/SMC
	Manipulator reducer	Ningbo/CUHK
	Silo Type (Medium Series)	Zhejiang/AsiaInfo
	Manipulator cylinder in place magnetic detection switch	Taiwan/Chilico
	Manipulator-assisted proximity switch	Zhejiang/Devre
	Manipulator control relays	France/Schneider
	Solenoid valve & pneumatic control element	Taiwan/AirTAC

The control system adopts the latest bus absolute manipulator special control system (3-6 axis expandable) and a variety of control systems to choose from, manipulator action program universal programming system, powerful, good performance, easy and fast operation, fast teaching programming.
